ABB 1SVR405541R3120 Interface Relay - 24V, SPDT 6A UL 508
Part Number: 1SVR405541R3120
Quick Summary
Interface Relay is ABB's compact solution that quickly interfaces PLC logic to field devices in control panels. Wiring errors and insufficient isolation during commissioning are common pain points this relay addresses. It carries CE, UKCA, and UL 508 certifications, plus CSA/cURus where required, ensuring regulatory compliance. With 24 V AC/DC control, gold-plated contacts, and DIN rail mounting, it delivers reliable control with simplified installation and robust performance in demanding environments. Engineers benefit from compact dimensions and easy field wiring that reduces commissioning time. The device also supports secure screw-terminal connections and a wide operating range (-40 to +70 C), improving reliability.
Product Information
Extended Description

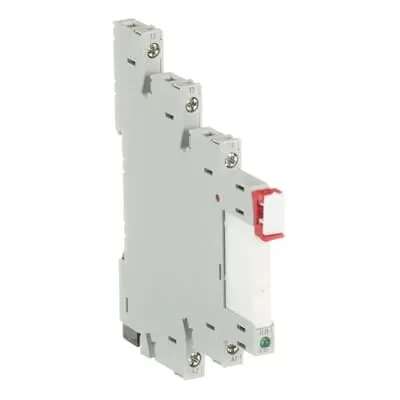

1SVR405541R3120 ABB: CR-S024VADC1CRGS Interface relay cpl. 1c/o, A1-A2=24VAC/DC, Output=6A/250VAC gold-plated contacts, screw terminals
EAN
4013614499296
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
2CDC117022D0201
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
6.3 mm
Product Net Height
76.4 mm
Product Net Depth / Length
88.5 mm
Product Net Weight
0.03 kg
Function
Fully assembled interface relay CR-S
Sub-Function
Relay with gold-plated contacts
Rated Control Supply Voltage (Us)
24 V AC/DC
Output
1 c/o (SPDT) contact
Output Signal
250 V / 6 A
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Operational Current DC-12 (Ie)
(24 V) 6 A
Rated Operational Current DC-13 (Ie)
(24 V) 1 A
Degree of Protection
Terminals IP20
Connecting Capacity
Flexible 2.5 mm² | Rigid 2.5 mm²
Tightening Torque
0.5 N·m
Wire Stripping Length
7 mm
Mounting on DIN Rail
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | IEC/EN 61984 | UL 508
Connecting Capacity UL/CSA
Flexible 14 AWG | Rigid 14 AWG
Tightening Torque UL/CSA
4.42 in·lb
Ambient Air Temperature
Operation -40 ... +70 °C | Storage 0 ... +40 °C
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-S Pluggable interface-relays and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – CR-S range pluggable interface relays
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-S Pluggable interface-relays and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-S Pluggable interface-relays and accessories
Package Level 1 Units
box 10 piece
Package Level 1 Width
93 mm
Package Level 1 Depth / Length
66 mm
Package Level 1 Height
81 mm
Package Level 1 Gross Weight
0.32 kg
Package Level 1 EAN
4013614486661
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712371
E-Number (Sweden)
4001401
Feature → Business Impact → Application: The CR-S device provides a 24 V AC/DC control input and a single SPDT output rated to 6 A at 250 VAC. This configuration simplifies logic distribution and reduces mis-wiring risk during panel wiring. It is ideally suited for PLC-to-field-device interfaces in machine tools, packaging lines, and conveyor systems. | Feature: Gold-plated contacts reduce contact resistance and wear, ensuring consistent switching even in noisy electrical environments. Business impact is lower maintenance and extended relay life, which translates to reduced downtime in critical production lines. This makes the relay a dependable interface for control signals in automated machines. | Feature: Screw terminals with 7 mm wire stripping, compatible with flexible 2.5 mm² or rigid 2.5 mm² conductors and a 0.5 N·m tightening torque. Business impact is faster, more secure field wiring and easier troubleshooting during commissioning. Application examples include cabinet wiring in industrial automation where durable connections matter. | Feature: TH35-7.5 DIN rail mounting aligns with IEC 60715 standards for compact automation stacks. Business impact is modular installation, simplified replacement, and scalable cabinet designs. Application is widespread in panel builders deploying compact automation solutions with standardized enclosures. | Feature: broad operating temperature from -40 to +70 Celsius and IP20 protection for terminals. Business impact: reliability in diverse industrial environments and extended product life. Application: equipment in machinery, packaging, and food-and-beverage lines where temperature and exposure vary. | Feature: certifications and readily accessible documentation including CE, UKCA, UL 508, CSA, cURus, RoHS compliance. Business impact: streamlines procurement and regulatory audits, and accelerates design-in with available data sheets and CAD drawings. Application: engineering teams specifying relays for global deployments.
