ABB 1SVR405541R3220 Interface Relay - 24V AC/DC, 6A UL 508
Part Number: 1SVR405541R3220
Quick Summary
ABB interface relay 1SVR405541R3220 provides a compact signal interface for automated control panels. Engineers often wrestle with wiring clutter, limited DIN rail space, and relay contacts that wear in DC control circuits. This device carries UL 508, CE/UKCA declarations, and CSA certification, giving regulatory assurance for global deployments. With 24 V AC/DC control, SPDT outputs, and spring terminal connections, it enables fast, error-free installation and easy field servicing. Gold-plated contacts deliver reliable switching at 6 A and 250 VAC, improving long-term performance in demanding environments.
Product Information
Extended Description

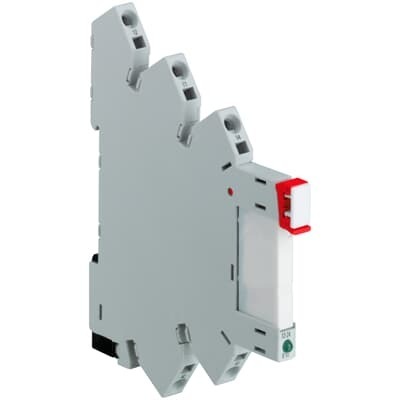

1SVR405541R3220 ABB: CR-S024VADC1CRGZ Interface relay cpl. 1c/o, A1-A2=24VAC/DC, Output=6A/250VAC gold-plated contacts, spring terminals
EAN
4013614499319
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
2CDC117022D0201
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
6.2 mm
Product Net Height
76.6 mm
Product Net Depth / Length
94.7 mm
Product Net Weight
0.03 kg
Function
Fully assembled interface relay CR-S
Sub-Function
Relay with gold-plated contacts
Rated Control Supply Voltage (Us)
24 V AC/DC
Output
1 c/o (SPDT) contact
Output Signal
250 V / 6 A
Terminal Type
Spring Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Operational Current DC-12 (Ie)
(24 V) 6 A
Rated Operational Current DC-13 (Ie)
(24 V) 1 A
Degree of Protection
Terminals IP20
Connecting Capacity
Flexible 2.5 mm² | Rigid 2.5 mm²
Tightening Torque
0.5 N·m
Wire Stripping Length
7 mm
Mounting on DIN Rail
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | IEC/EN 61984 | UL 508
Connecting Capacity UL/CSA
Flexible 14 AWG | Rigid 14 AWG
Tightening Torque UL/CSA
4.42 in·lb
Ambient Air Temperature
Operation -40 ... +70 °C | Storage 0 ... +40 °C
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-S Pluggable interface-relays and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – CR-S range pluggable interface relays
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-S Pluggable interface-relays and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-S Pluggable interface-relays and accessories
Package Level 1 Units
box 10 piece
Package Level 1 Width
93 mm
Package Level 1 Depth / Length
66 mm
Package Level 1 Height
81 mm
Package Level 1 Gross Weight
0.32 kg
Package Level 1 EAN
4013614486685
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712373
E-Number (Sweden)
4001403
Feature to benefit: 24 V AC/DC control voltage enables universal compatibility with PLCs and safety circuits, reducing inventory needs and wiring errors in control cabinets. Business impact: Faster commissioning, lower part counts, and reduced downtime during upgrades. Application: Suitable for automation panels in machine manufacturing and packaging lines. Feature to benefit: SPDT (1 c/o) output provides flexible control logic with a single relay, enabling normally open or normally closed configurations without additional parts. Application: Used for signal gating, mechanical interlocks, and logic inversion in control circuits. Feature to benefit: Gold-plated contacts minimize contact wear and corrosion, delivering stable performance over millions of switching cycles. Application: Critical in DC control paths and high-reliability cabinets. Feature to benefit: Spring terminals and 2.5 mm² wiring capacity simplify field wiring, provide solid vibration resistance, and speed up installation. Application: Ideal for compact DIN rail assemblies in harsh environments. Feature to benefit: DIN rail mounting TH35-7.5 and compact footprint save panel space and simplify retrofits. Application: Widely used in retrofit projects and new builds with standard mounting rails. Feature to benefit: Broad compliance with UL 508, CE, UKCA, CSA and RoHS supports global deployment and regulatory adherence. Application: Suitable for multinational facilities and certified process environments. Feature to benefit: Wide operating temperature range -40 to +70 °C ensures reliability in industrial or outdoor control enclosures. Application: Used in harsh manufacturing zones, process plants, and outdoor panels that require rugged relays.
