ABB 1SVR405541R7210 Interface Relay - 230V AC/DC, IP20
Part Number: 1SVR405541R7210
Quick Summary
The ABB 1SVR405541R7210 Interface Relay provides a compact signal interface for automation panels and machine controls. Engineers often struggle with wiring complexity and compatibility when expanding control logic in confined cabinets. It carries CE and UKCA declarations and is UL 508 and CSA/cURus listed, reinforcing safe industrial use. Designed for plug‑in, DIN‑rail mounting and ABB accessories, it helps shorten commissioning time and cut panel real estate. This combination delivers improved reliability, easier maintenance, and lower total cost of ownership. It is well suited for broad automation applications where quick integration and robust performance matter.
Product Information
Extended Description

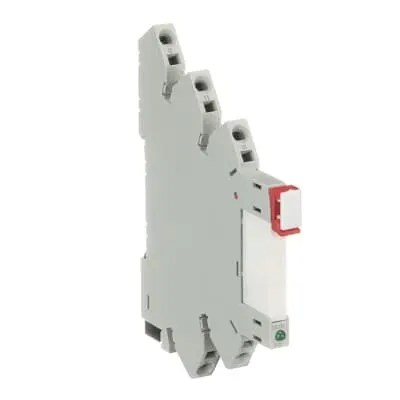

1SVR405541R7210 ABB: CR-S230VADC1CRZ Interface relay cpl. 1c/o, A1-A2=230VAC/DC, Output=6A/250VAC spring terminals
EAN
4013614499388
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
2CDC117022D0201
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
6.2 mm
Product Net Height
76.6 mm
Product Net Depth / Length
94.7 mm
Product Net Weight
0.03 kg
Function
Fully assembled interface relay CR-S
Sub-Function
Relay with standard contacts
Rated Control Supply Voltage (Us)
230 V AC/DC
Output
1 c/o (SPDT) contact
Output Signal
250 V / 6 A
Terminal Type
Spring Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Operational Current DC-12 (Ie)
(24 V) 6 A
Rated Operational Current DC-13 (Ie)
(24 V) 1 A
Degree of Protection
Terminals IP20
Connecting Capacity
Flexible 2.5 mm² | Rigid 2.5 mm²
Tightening Torque
0.5 N·m
Wire Stripping Length
7 mm
Mounting on DIN Rail
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | IEC/EN 61984 | UL 508
Connecting Capacity UL/CSA
Flexible 14 AWG | Rigid 14 AWG
Tightening Torque UL/CSA
4.42 in·lb
Ambient Air Temperature
Operation -40 ... +55 °C | Storage 0 ... +40 °C
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-S Pluggable interface-relays and accessories
RoHS Status
Following EU Directive 2011/65/EU
CSA Certificate
CSA Certificate – CR-S range pluggable interface relays
cURus Certificate
cURus508_E244328
Declaration of Conformity - CE
EU Declaration of Conformity - CR-S Pluggable interface-relays and accessories
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-S Pluggable interface-relays and accessories
Package Level 1 Units
box 10 piece
Package Level 1 Width
93 mm
Package Level 1 Depth / Length
66 mm
Package Level 1 Height
81 mm
Package Level 1 Gross Weight
0.32 kg
Package Level 1 EAN
4013614486753
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712380
E-Number (Sweden)
4001410
CR‑S family interfaces deliver a fully assembled SPDT contact in a compact plug‑in module. This design reduces wiring complexity and panel footprint, enabling faster layout changes and easier fault isolation during maintenance. Use in machine builders’ control panels to bridge PLC I/O with field devices while maintaining signal integrity and fast diagnostics. Rated control supply voltage is 230 V AC/DC and output is 250 V at 6 A, supporting both AC and DC control schemes and simplifying procurement and stocking. The spring terminals provide secure, vibration‑resistant connections with a 2.5 mm² capacity, while IP20 protection and DIN rail mounting on TH35‑7.5 simplify installation. Operating temperature ranges from -40 to +55 °C, ensuring reliability in harsh environments. Compliance with CE, UKCA, UL 508, CSA and RoHS reduces regulatory risk. Documentation and CAD files streamline sourcing and CAD integration for faster project delivery. In short, this relay delivers reliable control interfacing with compact, serviceable packaging for modern automation panels.
