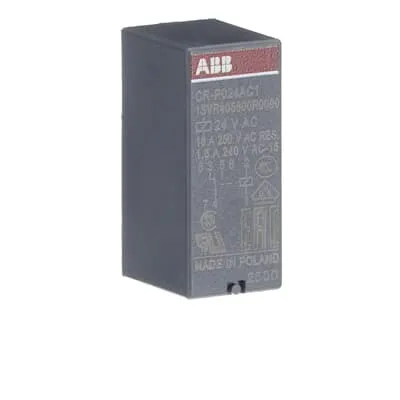

ABB CR-P024AC1 Pluggable interface relay - IP67
Part Number: 1SVR405600R0000
Quick Summary
ABB CR-P024AC1 Pluggable interface relay is a compact SPDT device designed for control panels and PCB mounting. Engineers often face crowded enclosures and time-consuming replacements; the pluggable design reduces wiring complexity and speeds maintenance. It carries CE and UKCA declarations, UL/UR listings, and VDE endorsements, underscoring rigorous global compliance. IP67 protection and a wide operating range (-40 to +70 °C) ensure reliable performance in harsh environments. Used with ABB sockets and compatible accessories, it supports modular, scalable control architectures that save space and cut downtime in industrial lines. Together with the 24 V AC control supply and 1 c/o SPDT output rated up to 250 V / 16 A, it delivers dependable switching for a variety of automation tasks.
Product Information
Extended Description
1SVR405600R0000 ABB: The CR-P024AC1 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 024 V AC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 16 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614498138
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
12.7 mm
Product Net Height
15.7 mm
Product Net Depth / Length
29 mm
Product Net Weight
0.014 kg
Function
Pluggable pcb interface relay CR-P
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
24 V AC
Rated Operational Voltage
400 V AC
Output
1 c/o (SPDT) contact
Output Signal
250 V / 16 A
Terminal Type
Soldering Pins
Rated Operational Current AC-12 (Ie)
(230 V) 16 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 16 A
Rated Operational Current DC-13 (Ie)
(24 V) 2.5 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
400 V
Degree of Protection
IP67
Mounting Position
1
Standards
IEC/EN 61810-1
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-P interface relays and accessories
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-P range
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-P, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-P Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-P Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE_40019129
Package Level 1 Units
box 10 piece
Package Level 1 Width
332 mm
Package Level 1 Depth / Length
17 mm
Package Level 1 Height
28 mm
Package Level 1 Gross Weight
0.157 kg
Package Level 1 EAN
4013614372902
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712738
E-Number (Norway)
4187332
E-Number (Sweden)
4005300
Feature: 24 V AC control supply with 1 c/o SPDT output. Business Impact: Direct PLC interface enables clean logic wiring and reliable control; Application: machine control panels and I/O interfaces. This reduces wiring complexity, improves response times, and lowers installation costs. Long-tail keywords: 24 V AC relay, SPDT interface relay, PCB-mounted relay. Feature: IP67 rated enclosure. Business Impact: protects electronics from dust and immersion in liquids; Application: harsh, industrial environments and outdoor panels. This extends service life and reduces field failures. Long-tail keywords: IP67 relay, rugged interface relay, industrial protection. Feature: Compact footprint (12.7 mm W × 15.7 mm H × 29 mm D) with soldering pins. Business Impact: saves panel space and simplifies hand-soldering or automated PCB assembly; Application: dense control cabinets and compact modules. Long-tail keywords: compact PCB relay, PCB mounting relay, space-saving relay. Feature: High-current ratings (output 250 V / 16 A; AC-12 up to 16 A at 230 V). Business Impact: supports switching of multiple loads from a single input; Application: motor starters, solenoids, and multi-channel interfaces. Long-tail keywords: relay with 16 A rating, AC-12, AC-15 ratings. Feature: Broad certifications and compatibility (CE, UKCA, UL/UR, CCC, VDE). Business Impact: ensures regulatory compliance and smoother approvals across regions; Application: global deployments with sockets, holders, and accessories. Long-tail keywords: UL/UR listed relay, CE certified relay, VDE approved interface relay. Feature: Wide operating temperature (-40 to +70 °C) and 2000 m altitude without derating. Business Impact: reliable performance in challenging environments; Application: automotive, food & beverage, and outdoor machinery. Long-tail keywords: -40 to 70°C relay, high-temperature relay, ambient range.
