ABB 1SVR405600R2000 Pluggable interface relay - IP67
Part Number: 1SVR405600R2000
Quick Summary
ABB 1SVR405600R2000 is a pluggable interface relay designed for compact control panels and PCB mounting in industrial automation. It features a 1 c/o SPDT output and a 120 V AC control supply, enabling reliable switching of multiple circuits from a single signal. This design helps minimize wiring complexity and reduces maintenance downtime by allowing quick replacement with ABB sockets and accessories. The relay enjoys IP67 protection, safeguarding against dust and immersion in water, while delivering robust performance in harsh environments. With a 16 A 250 V output rating and compliance to global standards such as CE and UL/CSA, it offers a scalable, space-efficient solution for machine controls and process interfaces. Secondary benefits include RoHS conformity and broad compatibility with ABB ecosystem components.
Product Information
Extended Description

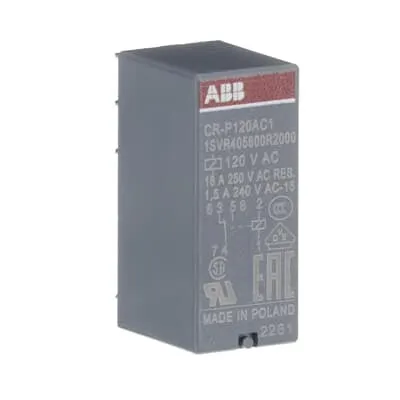

1SVR405600R2000 ABB: The CR-P120AC1 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 120 V AC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 16 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614498152
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
12.7 mm
Product Net Height
15.7 mm
Product Net Depth / Length
29 mm
Product Net Weight
0.014 kg
Function
Pluggable pcb interface relay CR-P
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
120 V AC
Rated Operational Voltage
400 V AC
Output
1 c/o (SPDT) contact
Output Signal
250 V / 16 A
Terminal Type
Soldering Pins
Rated Operational Current AC-12 (Ie)
(230 V) 16 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 16 A
Rated Operational Current DC-13 (Ie)
(24 V) 2.5 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
400 V
Degree of Protection
IP67
Mounting Position
1
Standards
IEC/EN 61810-1
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-P interface relays and accessories
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-P range
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-P, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-P Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-P Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE_40019129
Package Level 1 Units
box 10 piece
Package Level 1 Width
332 mm
Package Level 1 Depth / Length
17 mm
Package Level 1 Height
28 mm
Package Level 1 Gross Weight
0.157 kg
Package Level 1 EAN
4013614372964
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712750
E-Number (Norway)
4187335
Feature: Pluggable PCB interface relay CR-P; Business Impact: Simplified maintenance and rapid field replacement reduce downtime and service costs; Application: Direct PCB mounting or socket-based installation in automated control panels. Feature: IP67 protection; Business Impact: Reliable operation in dust and water-exposed environments lowers failure rates and service calls; Application: Washdown areas, outdoor enclosures, and packaging lines. Feature: 1 c/o SPDT output; Business Impact: Single input controls multiple circuits, enabling compact wiring and flexible logic; Application: Conveyor systems and machine control logic. Feature: 120 V AC control supply; Business Impact: Aligns with common control architectures, easing integration with existing PLCs and relays; Application: Industrial automation cabinets and control starters. Feature: High current ratings (AC-12 230 V, 16 A; DC-12 24 V, 16 A; DC-13 24 V, 2.5 A/250 V 0.1 A); Business Impact: Supports demanding loads and multi-channel switching without overspecifying components; Application: Servo drives, motors, and valve control in demanding environments. Feature: Compact dimensions (12.7 mm W, 15.7 mm H, 29 mm D); Business Impact: Higher density panel layouts and cost-effective cabinet design; Application: OEM equipment and compact machinery. Feature: Soldering pins and socket compatibility; Business Impact: Easy board mounting and straightforward replacement through ABB’s standard accessories; Application: Custom control panels and modular automation systems. Feature: Comprehensive certifications (CE, UKCA, UL/CSA, cUR, VDE, CCC, EAC); Business Impact: Regulatory acceptance across global installations; Application: Global OEM deployments and cross-border projects.
