ABB 1SVR405600R3000 Pluggable Interface Relay - IP67
Part Number: 1SVR405600R3000
Quick Summary
The ABB 1SVR405600R3000 pluggable interface relay provides SPDT control for compact control panels. Engineers often battle space constraints, wiring clutter, and costly maintenance with bulky relays. With IP67 protection and CE/UKCA conformity along with UL/CSA recognition, this device is built for harsh environments and global supply chains. Designed for direct PCB mounting or socket-based installation, it offers modularity and inventory simplification while delivering robust electrical protection and reliable switching for industrial machines.
Product Information
Extended Description

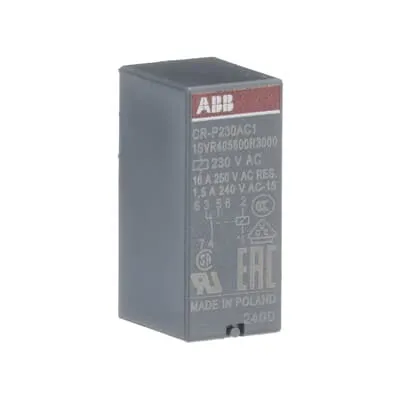

1SVR405600R3000 ABB: The CR-P230AC1 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 230 V AC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 16 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614498169
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
12.7 mm
Product Net Height
15.7 mm
Product Net Depth / Length
29 mm
Product Net Weight
0.014 kg
Function
Pluggable pcb interface relay CR-P
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
230 V AC
Rated Operational Voltage
400 V AC
Output
1 c/o (SPDT) contact
Output Signal
250 V / 16 A
Terminal Type
Soldering Pins
Rated Operational Current AC-12 (Ie)
(230 V) 16 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 16 A
Rated Operational Current DC-13 (Ie)
(24 V) 2.5 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
400 V
Degree of Protection
IP67
Mounting Position
1
Standards
IEC/EN 61810-1
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-P interface relays and accessories
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-P range
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-P, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-P Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-P Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE_40019129
Package Level 1 Units
box 10 piece
Package Level 1 Width
332 mm
Package Level 1 Depth / Length
17 mm
Package Level 1 Height
28 mm
Package Level 1 Gross Weight
0.157 kg
Package Level 1 EAN
4013614372971
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712752
E-Number (Norway)
4187336
E-Number (Sweden)
4005305
Feature → Business Impact → Application: The relay delivers a 1 c/o SPDT output rated at 250 V / 16 A, enabling you to switch multiple circuits from a single input signal, reducing module count and saving panel space in machine controls. This translates to faster assembly, easier maintenance, and lower total cost of ownership in automotive, packaging, and process automation applications. Feature → Business Impact → Application: A 230 V AC rated control supply voltage aligns with common PLC and sensor outputs, ensuring seamless integration with existing control architectures and minimizing the need for level shifting or adapters. This improves commissioning time and reduces wiring errors in factory automation lines. Feature → Business Impact → Application: IP67 protection guarantees operation in dusty or wet environments, enabling reliable performance in washdown areas, outdoor enclosures, and third-shift facilities, thereby boosting uptime and product quality. Feature → Business Impact → Application: The compact dimensions (12.7 mm width, 15.7 mm height, 29 mm depth) and soldering-pin terminals offer a minimal footprint and straightforward PCB or socket mounting, simplifying enclosure design and enabling multi-relay arrays in compact control panels. Feature → Business Impact → Application: The ability to use standard ABB sockets and accessories accelerates installation, reduces spare parts variety, and supports modular expansion in evolving systems. Feature → Business Impact → Application: Certifications and RoHS compliance provide regulatory confidence and supply-chain resilience, helping with audits and green procurement while maintaining reliable performance in demanding industrial environments.
