ABB 1SVR405600R4000 CR-P012DC1 Pluggable Interface Relay - IP67
Part Number: 1SVR405600R4000
Quick Summary
CR-P012DC1 pluggable interface relay is designed for compact control panels, enabling reliable switching with a single input. Engineers often wrestle with space constraints, wiring complexity, and maintenance when integrating relays into modern automation systems. This ABB device delivers robust IP67 protection, IEC/EN 61810-1 compliance, and UL/CSA safety certifications, offering dependable performance in harsh environments. By combining a pluggable form factor with socket compatibility and RoHS compliance, it helps reduce panel real estate and maintenance costs while ensuring dependable control across diverse industrial applications.
Product Information
Extended Description

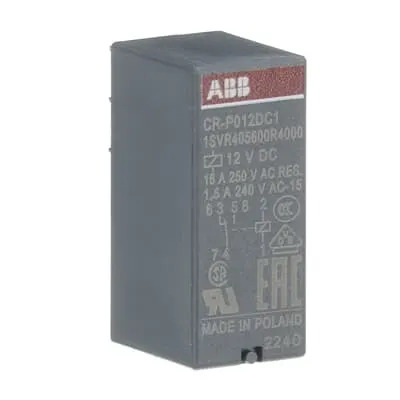

1SVR405600R4000 ABB: The CR-P012DC1 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 12 V DC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 16 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614498176
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
12.7 mm
Product Net Height
15.7 mm
Product Net Depth / Length
29 mm
Product Net Weight
0.014 kg
Function
Pluggable pcb interface relay CR-P
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
12 V DC
Rated Operational Voltage
400 V AC
Rated Frequency (f)
50 / 60 Hz
Output
1 c/o (SPDT) contact
Output Signal
250 V / 16 A
Terminal Type
Soldering Pins
Rated Operational Current AC-12 (Ie)
(230 V) 16 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 16 A
Rated Operational Current DC-13 (Ie)
(24 V) 2.5 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
400 V
Degree of Protection
IP67
Mounting Position
1
Standards
IEC/EN 61810-1
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +85 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-P interface relays and accessories
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-P range
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-P, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-P Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-P Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE_40019129
Package Level 1 Units
box 10 piece
Package Level 1 Width
332 mm
Package Level 1 Depth / Length
17 mm
Package Level 1 Height
28 mm
Package Level 1 Gross Weight
0.157 kg
Package Level 1 EAN
4013614372896
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712736
E-Number (Norway)
4187328
The CR-P012DC1 provides a 12 V DC rated control supply voltage, enabling seamless integration with existing PLCs and microcontrollers, which translates to reduced wiring complexity and energy efficiency in control logic. This directly improves reliability and reduces setup time in panel assemblies, especially when used in sensing and switching tasks. The 1 c/o SPDT output rated at 250 V / 16 A allows a single input signal to switch multiple circuits, enabling cost-effective control of lighting, actuators, and signaling loads while maintaining safe margins on mains voltages in industrial environments. With an IP67 protection rating and a wide operating temperature range (-40 to +85 °C), the relay sustains dust, water, and extreme temperatures, increasing uptime in automated lines and outdoor or wash-down areas. Its compact dimensions (12.7 mm width, 15.7 mm height, 29 mm depth) and soldering-pin terminals offer flexible PCB mounting or plug-and-play with ABB sockets, accelerating installation and simplifying field replacements. Compliance with RoHS and multiple safety standards (CE, UKCA, UL/CSA, cUR, VDE) ensures regulatory alignment for global deployments, while the option to source in pack configurations (box 10 piece) supports efficient stocking and logistics across multi-site projects.
