ABB 1SVR405601R0000 Pluggable interface relay - IP67
Part Number: 1SVR405601R0000
Quick Summary
ABB 1SVR405601R0000 pluggable interface relay enables compact control panel wiring for PCB mounting or socket-based configurations. In today’s crowded automation spaces, engineers confront limited mounting options and tangled wiring, which slow assembly and increase service time. The device is built to meet rigorous requirements with IP67 protection and multiple certifications, including CE and UL/CSA (and UKCA) for broad market acceptance. Its 24 V AC control supply and SPDT outputs simplify logic, while ABB sockets and accessories enable scalable, serviceable installations that reduce wiring complexity and maintenance costs. With a compact footprint and robust environmental ratings, it supports reliable automation across diverse industries and panel designs.
Product Information
Extended Description

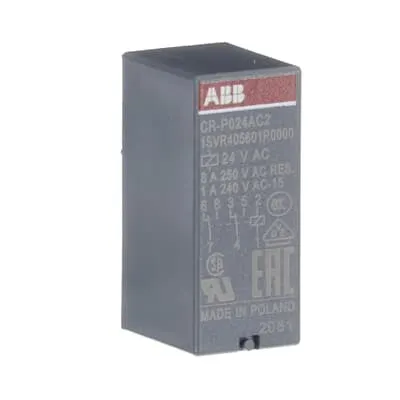

1SVR405601R0000 ABB: The CR-P024AC2 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 24 V AC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 8 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614498220
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
12.7 mm
Product Net Height
15.7 mm
Product Net Depth / Length
29 mm
Product Net Weight
0.014 kg
Function
Pluggable pcb interface relay CR-P
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
24 V AC
Rated Operational Voltage
400 V AC
Rated Frequency (f)
50 / 60 Hz
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 8 A
Terminal Type
Soldering Pins
Rated Operational Current AC-12 (Ie)
(230 V) 8 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 8 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
400 V
Degree of Protection
IP67
Mounting Position
1
Standards
IEC/EN 61810-1
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-P interface relays and accessories
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-P range
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-P, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-P Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-P Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE_40019129
Package Level 1 Units
box 10 piece
Package Level 1 Width
332 mm
Package Level 1 Depth / Length
17 mm
Package Level 1 Height
28 mm
Package Level 1 Gross Weight
0.157 kg
Package Level 1 EAN
4013614372995
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712739
E-Number (Norway)
4187341
E-Number (Sweden)
4005307
Feature → Business Impact → Application: The CR-P driven design and pluggable PCB interface enable ultra-compact control panels, reducing panel depth and enabling easier field upgrades; this translates to lower enclosure costs and faster commissioning in machine-building environments. Feature → 24 V AC rated control supply with 2 c/o SPDT outputs → Simplified signal wiring and flexible routing in control systems; Application: presses, conveyors, and packaging lines benefit from single-input control driving multiple isolated circuits, improving responsiveness and reducing wiring errors. Feature → IP67 ingress protection → Increased reliability in dusty or damp environments; Application: equipment deployed near dust-prone or washdown areas, including food and beverage or material handling lines, maintains operation without frequent seal failures. Feature → Soldering pins and compatibility with ABB sockets → Easier installation and future upgrades; Application: upgrade paths for legacy relay sockets and PCB boards without major redesigns. Feature → Certifications (CE, UKCA, UL/CSA, cUR, VDE, etc.) → Regulatory risk mitigation and broader market eligibility; Application: global deployments with compliant conformity evidence and streamlined approvals.
Get a Quick Quote for a ABB 1SVR405601R0000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405601R0000?
Enquire Now
FAQs
Install the relay using its soldering pins directly to a PCB or snap it into compatible ABB sockets for modularity. Verify a 24 V AC control supply, ensure proper polarity for any installed coils, and use IP67-rated enclosures or gaskets where moisture or dust is a concern. The compact dimensions (12.7 mm W, 15.7 mm H, 29 mm D) help fit tight panels, and mounting in a socketed setup simplifies future maintenance.
The relay supports 250 V at up to 8 A on its outputs. It provides rated operational currents for AC and DC: AC-12 (230 V) up to 8 A, AC-15 (230 V) up to 1.5 A, AC-15 (120 V) up to 3 A, DC-12 (24 V) up to 8 A, and DC-13 (24 V) up to 2 A or 0.1 A at 250 V. These ratings enable reliable control of indicators, actuators, and small contactors while meeting standard industrial requirements.
Yes. The relay offers IP67 protection and operates from -40 to +70 °C, with up to 2000 m altitude without derating. This makes it well-suited for dusty, wet, or cool-down environments common in conveyors, packaging lines, and process automation. For extended life, use proper enclosures and consider derating if operation approaches upper temperature limits in hot facilities.
The 1SVR405601R0000 carries a broad certification set including CE, UKCA, UL/CSA, cUR, UR, EAC, VDE, CCC, RMRS, and UR (ANSI/UL 508) coverage. This portfolio supports global deployments, reduces the need for site-specific approvals, and helps ensure regulatory compliance across multiple regions and industries.
ABB offers standard sockets, logical sockets, pluggable function modules, holders, and markers as accessories. These enable quick field replacements, scalable expansion of control architectures, and clear labeling for maintenance. Using modular components minimizes downtime, simplifies spare-part management, and improves overall panel efficiency.
