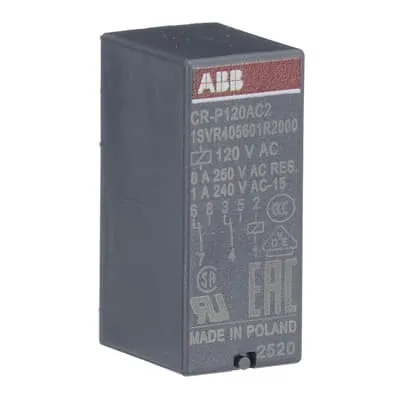

ABB 1SVR405601R2000 Pluggable interface relay - IP67
Part Number: 1SVR405601R2000
Quick Summary
ABB 1SVR405601R2000 pluggable interface relay enables compact, reliable control on PCB-mounted systems. Design teams often wrestle with limited space, crowded wiring, and maintenance downtime in small control panels. With IP67 protection and compliance to CE, UL/CSA, and UKCA standards, the device delivers rugged performance in harsh environments. Its socket-ready, modular design minimizes replacement time and enables scalable, modular control architectures across industrial automation applications. The 120 V AC control supply and SPDT 2c/o outputs support multiple circuits from a single input signal, reducing wiring and inventory. ABB also offers compatible sockets, holders, and CAD resources to streamline engineering workflows.
Product Information
Extended Description
1SVR405601R2000 ABB: The CR-P120AC2 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 120 V AC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 8 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614498244
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
12.7 mm
Product Net Height
15.7 mm
Product Net Depth / Length
29 mm
Product Net Weight
0.014 kg
Function
Pluggable pcb interface relay CR-P
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
120 V AC
Rated Operational Voltage
400 V AC
Rated Frequency (f)
50 / 60 Hz
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 8 A
Terminal Type
Soldering Pins
Rated Operational Current AC-12 (Ie)
(230 V) 8 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 8 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
400 V
Degree of Protection
IP67
Mounting Position
1
Standards
IEC/EN 61810-1
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-P interface relays and accessories
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-P range
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-P, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-P Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-P Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE_40019129
Package Level 1 Units
box 10 piece
Package Level 1 Width
332 mm
Package Level 1 Depth / Length
17 mm
Package Level 1 Height
28 mm
Package Level 1 Gross Weight
0.157 kg
Package Level 1 EAN
4013614373053
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712751
E-Number (Norway)
4187344
Feature: Compact, pluggable CR-P interface relay with 2 c/o (SPDT) contacts. Impact: Its modular design and space-saving footprint reduce panel width, simplify wiring, and shorten commissioning time. Application: Ideal for PCB-mounted control systems or socket-based configurations in machine building and process automation, where space is at a premium and serviceability matters. Feature: IP67-rated enclosure provides robust dust and water ingress protection. Impact: Translates to lower maintenance costs and fewer field failures in dirty, damp, or wash-down environments. Application: Conveyor lines, wet processing stations, outdoor cabinets, and automotive assembly lines demanding reliable relays in challenging environments. Feature: Rated control voltage of 120 V AC and rated operational voltage up to 400 V AC with 50/60 Hz compatibility. Impact: Supports flexible control schemes, enabling a single input to gate multiple outputs while maintaining safety margins. Application: Control panels and automation networks across manufacturing cells needing consistent timing and dependable signaling. Feature: Output configuration and ratings — 2 c/o SPDT contacts, 250 V / 8 A, with soldering-pin terminals in a compact 12.7 mm × 15.7 mm × 29 mm form. Impact: Facilitates multi-circuit switching in tight spaces, reduces board clutter, and eases retrofits. Application: Industrial machinery, robotics interfaces, signal multiplexing, and interlock circuits requiring reliable, replaceable relays. Feature: Broad certifications and RoHS compliance — IEC/EN 61810-1, CE, UKCA, UL/CSA, cUR, CCC, EAC, RoHS. Impact: Eases regulatory approvals and supplier qualification for international deployments. Application: Global OEMs delivering equipment across Europe, North America, and other regions with strict electrical safety and environmental standards. Feature: Accessory ecosystem and design-data support — standard sockets, holders, and CAD drawings. Impact: Streamlines engineering workflows and reduces design-to-installation time. Application: System integrators and OEMs seeking plug-and-play reliability and accelerated time-to-market.
