ABB 1SVR405601R4000 Pluggable Interface Relay - IP67
Part Number: 1SVR405601R4000
Quick Summary
ABB 1SVR405601R4000 Pluggable Interface Relay provides compact, reliable control for PCB-mounted boards or socket-based panels. Engineers often wrestle with limited panel space, crowded wiring, and the need for quick maintenance in modern control systems. Key certifications include IP67 protection for dust and water ingress, UL/CSA safety ratings, and CE/UKCA conformity, which streamline regulatory approvals across regions. Typical applications include direct board mounting, socket-based configurations, and modular control panels where space, reliability, and serviceability are priorities. By combining plug‑in convenience with rugged performance, this relay supports scalable automation, reduces installation time, and enables easier field servicing in harsh industrial environments.
Product Information
Extended Description

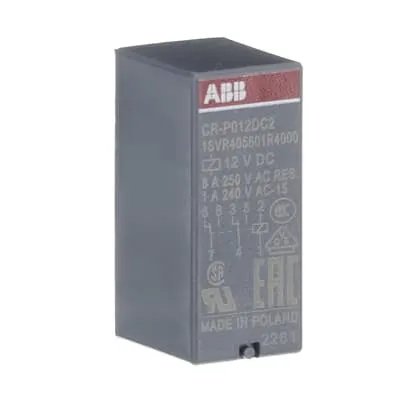

1SVR405601R4000 ABB: The CR-P012DC2 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 12 V DC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 8 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614498268
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
12.7 mm
Product Net Height
15.7 mm
Product Net Depth / Length
29 mm
Product Net Weight
0.014 kg
Function
Pluggable pcb interface relay CR-P
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
12 V DC
Rated Operational Voltage
400 V AC
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 8 A
Terminal Type
Soldering Pins
Rated Operational Current AC-12 (Ie)
(230 V) 8 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 8 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
400 V
Degree of Protection
IP67
Mounting Position
1
Standards
IEC/EN 61810-1
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +85 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-P interface relays and accessories
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-P range
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-P, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-P Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-P Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE_40019129
Package Level 1 Units
box 10 piece
Package Level 1 Width
332 mm
Package Level 1 Depth / Length
17 mm
Package Level 1 Height
28 mm
Package Level 1 Gross Weight
0.157 kg
Package Level 1 EAN
4013614372988
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712737
E-Number (Norway)
4187337
Rated Control Supply Voltage is 12 V DC, enabling direct interface with common PLCs and low-voltage logic modules. This reduces wiring complexity and avoids extra interfacing hardware. The device provides 2 c/o SPDT outputs with a 250 V / 8 A rating, allowing simultaneous switching of two circuits from a single input signal, which simplifies circuit design and reduces panel footprint. IP67 protection delivers robust dust and water ingress resistance, supporting reliable operation in dusty or wash-down environments and expanding its suitability for enclosure or outdoor installations. The compact form factor (12.7 mm wide, 15.7 mm high, 29 mm deep) and soldering-pin terminal design facilitate dense PCB layouts and straightforward hand or automated soldering during assembly. RoHS-compliant with CE, UKCA, UL/CSA certifications, the unit supports global regulatory requirements and minimizes compliance risk in multinational deployments. The pluggable interface concept enables quick field swaps without rewiring, lowering maintenance time and extending system uptime, while compatibility with ABB sockets and CAD resources accelerates design wins in automation projects.
