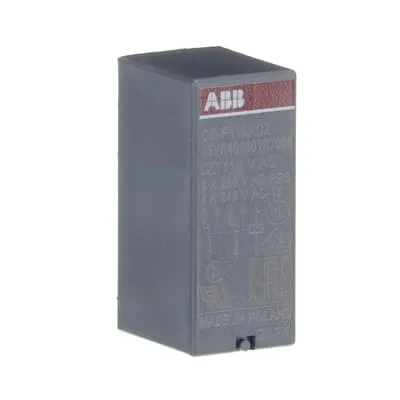

ABB 1SVR405601R7000 Pluggable Interface Relay - IP67
Part Number: 1SVR405601R7000
Quick Summary
ABB 1SVR405601R7000 is a pluggable interface relay designed for compact control panels and PCB mounting. In tight spaces, engineers struggle with wiring density and maintenance access; this unit minimizes footprint without sacrificing reliability. It delivers IP67 protection and carries CE and UL/CSA certifications, ensuring operation in challenging environments while meeting regulatory requirements. The 110 V AC control supply and two SPDT outputs enable multi-circuit control from a single input, while soldering-pin terminals and socket compatibility simplify installation and future upgrades. This combination translates to lower panel costs, faster serviceability, and improved overall equipment effectiveness for industrial automation projects.
Product Information
Extended Description
1SVR405601R7000 ABB: The CR-P110AC2 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 110 V AC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 8 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
35 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
EAN
4013614498299
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
12.7 mm
Product Net Height
15.7 mm
Product Net Depth / Length
29 mm
Product Net Weight
0.014 kg
Function
Pluggable pcb interface relay CR-P
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
110 V AC
Rated Operational Voltage
400 V AC
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 8 A
Terminal Type
Soldering Pins
Rated Operational Current AC-12 (Ie)
(230 V) 8 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 8 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
400 V
Degree of Protection
IP67
Mounting Position
1
Standards
IEC/EN 61810-1
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-P interface relays and accessories
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-P range
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-P, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-P Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-P Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE_40019129
Package Level 1 Units
box 10 piece
Package Level 1 Width
332 mm
Package Level 1 Depth / Length
17 mm
Package Level 1 Height
28 mm
Package Level 1 Gross Weight
0.157 kg
Package Level 1 EAN
4013614373039
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712747
E-Number (Norway)
4187343
Feature → Business Impact → Application: The pluggable CR-P interface design reduces panel downtime by allowing quick module swaps without rework, improving maintenance efficiency and asset availability in production lines. This translates to tangible cost savings and faster changeovers in automated machines and packaging lines. Feature → Business Impact → Application: A 110 V AC control supply aligns with common PLC and controller logic, reducing integration risk and enabling straightforward wiring schemes across multiple machines and stations. This supports scalable deployments in metal fabrication or material handling applications. Feature → Business Impact → Application: Two SPDT outputs (2 c/o) provide flexible signal routing and interlocking schemes, enabling complex control sequences from a single input while maintaining isolation; ideal for safety interlocks in conveyors or machine zones. Feature → Business Impact → Application: IP67 protection delivers reliable performance in dusty, wet, or washdown environments, ensuring consistent operation in food processing or automotive assembly lines. Feature → Business Impact → Application: Compact dimensions (12.7 mm x 15.7 mm x 29 mm) and soldering-pin terminals save panel space and facilitate automated PCB assembly, enabling higher packing density and easier replacement in existing control panels. Feature → Business Impact → Application: Pluggable sockets, holders, and markers streamline installation, service, and spare-part management, reducing downtime during maintenance windows and improving lifecycle cost of the automation system.
Get a Quick Quote for a ABB 1SVR405601R7000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405601R7000?
Enquire Now
FAQs
The CR-P110AC2 is designed for either direct PCB mounting using soldering pins or integrated with ABB sockets for modular insertion. Ensure the 110 V AC control coil is wired to the appropriate control circuit while observing polarity where applicable. Mount the unit with proper clearance, verify insulation between live and control circuits, and secure the socket or PCB to prevent vibration.
The process minimizes downtime thanks to its pluggable design, enabling quick replacement without rework, and supports easier field upgrades in evolving control architectures.
This model provides two SPDT (2 c/o) contacts with an output of 250 V at up to 8 A. Rated operational current AC-12 at 230 V is 8 A, with AC-15 ratings around 3 A at 120 V or 1.5 A at 230 V. Insulation voltage is 400 V, and the device supports a 400 V insulation standard, suitable for mixed-voltage control circuits.
Yes. The CR-P110AC2 carries IP67 protection, guarding against dust ingress and immersion up to one meter for water exposure. It operates from -40 to +70 °C and is designed for rugged industrial settings. Its compact form factor and socket compatibility also help maintain reliability in space-constrained, high-dust or moisture-prone environments such as manufacturing lines.
The relay is RoHS compliant and accompanied by CE and UKCA declarations. It carries UL/CSA and cUR certifications for safety-critical applications, along with additional declarations (CCC, EAC, VDE) where required by regional markets. This broad certification footprint supports global deployment in compliant control systems and safety-critical automation projects.
The pluggable design enables rapid hot-swaps of failed modules without panel rewiring, reducing downtime and maintenance costs. Socket-based installation simplifies spares management and field upgrades, lowering spare-part inventory needs. The compact size and standardized 110 V AC control enable scalable deployments across multiple machines, delivering faster project ROI through improved mean time between failures and easier lifecycle management.
