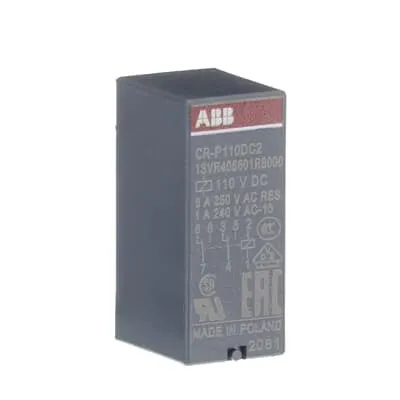

ABB 1SVR405601R8000 Pluggable Interface Relay - IP67
Part Number: 1SVR405601R8000
Quick Summary
ABB 1SVR405601R8000 interface relay is a pluggable SPDT relay for automation control panels. This compact device simplifies control wiring and frees panel space by combining a socket-ready module with direct PCB mounting options. It delivers a 110 V DC control supply and 250 V/8 A switching capability, making it suitable for small to mid-size control circuits in demanding environments. It carries IP67 protection and compliance with IEC/EN 61810-1, along with UL/CSA and CE certifications, ensuring safety and reliability in harsh environments. Used with ABB sockets and standard accessories, it streamlines installation, reduces downtime, and supports scalable control architectures for electrical protection and circuit control applications.
Product Information
Extended Description
1SVR405601R8000 ABB: The CR-P110DC2 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 110 V DC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 8 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
35 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
EAN
4013614498305
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
12.7 mm
Product Net Height
15.7 mm
Product Net Depth / Length
29 mm
Product Net Weight
0.014 kg
Function
Pluggable pcb interface relay CR-P
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
110 V DC
Rated Operational Voltage
400 V AC
Rated Frequency (f)
50 / 60 Hz
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 8 A
Terminal Type
Soldering Pins
Rated Operational Current AC-12 (Ie)
(230 V) 8 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 8 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
400 V
Degree of Protection
IP67
Mounting Position
1
Standards
IEC/EN 61810-1
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +85 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-P interface relays and accessories
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-P range
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-P, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-P Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-P Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE_40019129
Package Level 1 Units
box 10 piece
Package Level 1 Width
332 mm
Package Level 1 Depth / Length
17 mm
Package Level 1 Height
28 mm
Package Level 1 Gross Weight
0.157 kg
Package Level 1 EAN
4013614373046
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712749
E-Number (Norway)
4187340
Two SPDT outputs integrated into the CR-P pluggable interface relay enable independent control of two circuits from a single input, reducing wiring complexity and panel footprint. The business impact is faster commissioning, easier maintenance, and lower wiring costs in automated lines. This configuration suits machine controllers, conveyor sections, and I/O expansion in electrical protection and circuit control networks. The relay is driven by a 110 V DC control supply, enabling direct integration with common PLC input logic and minimizing the need for additional power conversion. This reduces panel clutter and simplifies wiring diagrams for engineers and technicians in industrial automation. Its IP67 rating and robust construction ensure reliable operation in dusty or washdown environments, delivering longer mean time between maintenance in process industries. Compatible with ABB sockets and standard accessories, installation is faster and more scalable across new lines or retrofit projects.
Get a Quick Quote for a ABB 1SVR405601R8000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405601R8000?
Enquire Now
FAQs
The CR-P110DC2 pluggable interface relay can be mounted directly on a printed circuit board or used in conjunction with ABB sockets. It uses soldering pins for electrical connections and supports compact, socket-based installations. For best results, pair with the appropriate ABB socket or holder, confirm the 110 V DC control supply, and secure the module to ensure IP67 protection in the intended enclosure.
Rated control supply voltage is 110 V DC, with a 2 c/o SPDT output capable of switching up to 250 V at 8 A. The device supports AC and DC operation within its ratings, including DC-12 and DC-13 currents, and provides a 400 V insulation voltage. The combination allows safe control of multiple circuits from a single input signal in industrial control schemes.
Yes. The CR-P110DC2 is rated IP67, providing protection against dust and immersion in water up to 1 meter. It is specified for operation from -40 to +85 °C and can be used in washdown areas or exposed machinery environments, making it well-suited for food processing, packaging, and outdoor automation applications.
The relay carries CE, UL/CSA, cUR, UKCA, and EAC certifications, along with CCC and other declarations of conformity. These approvals support installation in regulated industrial environments, facilitate market access, and help ensure compliance with safety and environmental requirements across regions.
The product is listed as Active with zero-day lead time in supplier records and is stocked at multiple warehouses. This enables rapid fulfillment for urgent manufacturing needs, reduces downtime, and supports just-in-time procurement strategies in engineering projects.
