ABB 1SVR405606R1000 Pluggable interface relay - IP67
Part Number: 1SVR405606R1000
Quick Summary

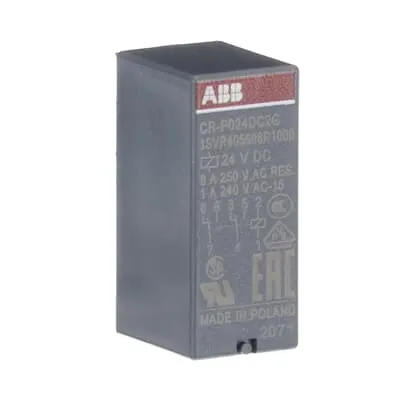

CR-P024DC2G pluggable interface relay provides compact PCB-mounted control for automation panels. Engineers often struggle with space constraints and wiring complexity in dense control cabinets. Key certifications include IP67 protection, CE and UL/CSA compliance, and RoHS. The device supports 24 V DC control with 2 SPDT outputs and is designed to work with ABB sockets for modular, scalable installations. This combination delivers reliable switching with a small footprint, while enabling straightforward maintenance and future expansion through pluggable modules. Rugged temperature range and gold-plated contacts further support long service life in demanding environments.
Product Information
Extended Description
1SVR405606R1000 ABB: The CR-P024DC2G pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 24 V DC rated control supply voltage and has a 2 c/o (SPDT) output with gold plated contacts rated at 250 V / 8 A. The gold plating ensures contact reliability for low load applications. enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614498329
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
12.7 mm
Product Net Height
15.7 mm
Product Net Depth / Length
29 mm
Product Net Weight
0.014 kg
Function
Pluggable pcb interface relay CR-P
Sub-Function
Relay with gold-plated contacts
Rated Control Supply Voltage (Us)
24 V DC
Rated Operational Voltage
400 V AC
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 8 A
Terminal Type
Soldering Pins
Rated Operational Current AC-12 (Ie)
(230 V) 8 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 8 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
400 V
Degree of Protection
IP67
Mounting Position
1
Standards
IEC/EN 61810-1
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +85 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-P interface relays and accessories
RoHS Status
Following EU Directive 2011/65/EU
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-P, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-P Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-P Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE_40019129
Package Level 1 Units
box 10 piece
Package Level 1 Width
332 mm
Package Level 1 Depth / Length
17 mm
Package Level 1 Height
28 mm
Package Level 1 Gross Weight
0.157 kg
Package Level 1 EAN
4013614400919
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Norway)
4187726
Feature 24 V DC coil with 2 c/o SPDT outputs → Simplified control logic and wiring, enabling faster panel assembly and easier diagnostics in automation projects. Application: Ideal for machine control, signaling, and interlocking within automation cabinets. Feature IP67 enclosure → Provides dust and water ingress protection, allowing installation in harsh environments such as wash-down areas and outdoor equipment without extra housings. Application: Suitable for process automation, packaging lines, and outdoor controllers. Feature gold-plated contacts → Improves reliability in low-load circuits and enhances switching stability, reducing contact corrosion and maintenance cycles. Application: Critical in signaling and feedback loops where precision matters. Feature Pluggable interface with PCB mounting or sockets → Saves panel footprint and simplifies upgrades, field servicing, and module replacement. Application: Scalable automation panels and modular control architectures. Feature 24 V DC coil and 400 V AC rating → Delivers versatile performance across control and load sides, enabling wider usage across machines. Application: General-purpose interface relays in industrial control. Feature Comprehensive documentation and compatibility with ABB sockets → Streamlines procurement, reduces engineering time, and supports fast commissioning. Application: Engineering design support and retrofit projects.
