ABB 1SVR405606R3013 Interface Relay - IP40, 230 V AC
Part Number: 1SVR405606R3013
Quick Summary
ABB 1SVR405606R3013 Interface Relay provides a compact, pluggable control interface for reliable signal switching in industrial panels. Engineers often struggle with bulky assemblies, misaligned sockets, and tedious maintenance when wiring relay modules. This unit line offers CE conformity, RoHS compliance, and IP40 protection, backed by IEC/EN 61810-1 and IEC/EN 63000 standards for dependable operation in demanding environments. With a 230 V AC control supply, 2 SPDT contacts, and a compact 16 mm width, it minimizes panel depth and wiring complexity while maximizing reliability. The modular socket and holder system also streamlines installation, spare-part planning, and field replacement, delivering tangible time and cost savings for equipment builders and end users.
Product Information
Extended Description

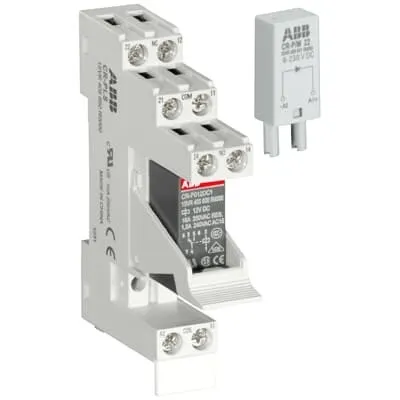

1SVR405606R3013 ABB: The CR-P230AC2GLC92 a complete relay assembly consisting of an interface relay, socket, holder and function module. The interface relay is from the CR-P (pcb) relay range. This relay operates with a 230 V AC rated control supply voltage and has a 2 c/o (SPDT) output contact rated at 250 V / 8 A.
EAN
4016779877268
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-PLS, CR-PSS, CR-MxLS(H), CR-MxSS, CR-MxSF(B), CR-UxS(M) sockets
Instructions and Manuals (Part 2)
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
16 mm
Product Net Height
82 mm
Product Net Depth / Length
98 mm
Product Net Weight
0.061 kg
Function
Pluggable fully assembled pcb interface relay CR-P
Sub-Function
Relay with gold-plated contacts
Rated Control Supply Voltage (Us)
230 V AC
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 8 A
Terminal Type
Spring Terminals
Degree of Protection
IP40
Standards
IEC/EN 63000 | IEC/EN 61810-1 | IEC/EN 61984
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
1SVD982018-0001
RoHS Status
Following EU Directive 2011/65/EU
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-P Pluggable interface relays, complete units
Package Level 1 Units
box 10 piece
Package Level 1 Width
92 mm
Package Level 1 Depth / Length
220 mm
Package Level 1 Height
65 mm
Package Level 1 Gross Weight
0.707 kg
Package Level 1 EAN
4013614551666
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
Compact, plug-in design with a 16 mm width reduces panel depth and enables denser control layouts in machine control applications. The complete assembly—interface relay, socket, holder, and function module—simplifies stocking and replacement in the field, cutting downtime and improving uptime. With 230 V AC control, two SPDT contacts rated at 250 V/8 A, and gold-plated contacts, the module delivers reliable switching with longer life and lower maintenance. Spring terminals speed wiring and improve vibration resistance, while IP40 protection and RoHS compliance ensure safe, compliant operation in typical control-panel environments. Compatibility with the CR-P range sockets such as CR-PLS and CR-PSS accelerates integration, and CAD drawings and data sheets are readily available to streamline engineering. This modular approach also supports scalable procurement (Minimum Order Quantity 10 piece) and easier spare-parts planning for OEMs and maintenance teams. In practice, engineers gain faster commissioning, reduced wiring errors, and lower total cost of ownership.
Get a Quick Quote for a ABB 1SVR405606R3013
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405606R3013?
Enquire Now
FAQs
Install by confirming a 230 V AC control supply and selecting the compatible CR-P socket (CR-P series). Mount the plug-in interface relay into the socket, secure using the holder, and connect via spring terminals for wiring. Ensure the assembly sits within IP40-protected enclosures and follow the included CAD drawings for precise placement in the control panel. This approach reduces wiring errors and speeds commissioning.
The unit provides two changeover contacts (SPDT) rated for up to 250 V, 8 A. The coil operates at 230 V AC. Gold-plated contacts improve longevity and reduce contact resistance under inductive loads. Plan loads per contact to stay within the 8 A rating, and consider derating for highly inductive or motor-driven circuits to maximize reliability.
Yes. The CR-P230AC2GLC92 is a complete relay assembly designed for plug-in operation with CR-P sockets, including popular options such as CR-PLS and CR-PSS. It is part of ABB's CR-P series and benefits from established socket compatibility, streamlined field maintenance, and access to ABB CAD resources for rapid system integration.
The module adheres to CE conformity and RoHS compliance under EU Directive 2011/65/EU. It references IEC/EN 63000, IEC/EN 61810-1, and IEC/EN 61984 for electrical safety and performance. IP40 protection supports indoor control-panel use, and ETIM/UNSPSC classifications aid in standardized procurement and spare-parts management.
The modular design reduces maintenance time through rapid plug-in replacement and interchangeable sockets/holders, cutting downtime and field servicing costs. With a 10 piece MOQ, procurement is predictable, while spare parts and CAD resources streamline commissioning. The result is lower total cost of ownership, faster fault isolation, and improved equipment availability for automation projects.
