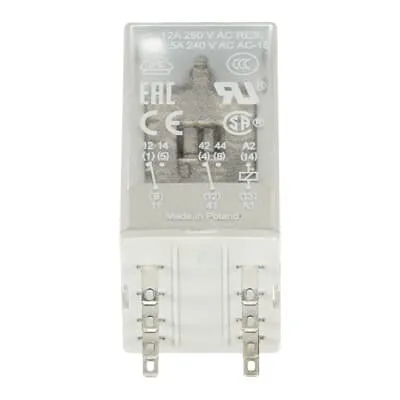

ABB 1SVR405611R0000 Pluggable interface relay - IP40
Part Number: 1SVR405611R0000
Quick Summary
ABB 1SVR405611R0000 pluggable interface relay enables compact, plug-and-play control of multiple circuits in automation panels. This modular solution reduces wiring complexity and simplifies maintenance by swapping relays without rewiring. Engineers rely on its 24 V AC control coil, 250 V AC switching capability, and 12 A load rating to safely manage actuators, indicators, and sensor interfaces. The CR-M socket compatibility ensures fast replacement and scalable panel designs. It also supports a broad safety and quality framework with CE, UL/CSA, and UKCA certifications, giving you assurance across global standards. By leveraging DIN rail mounting and readily available accessories, you gain installation speed, inventory efficiency, and reliable operation in demanding environments.
Product Information
Extended Description
1SVR405611R0000 ABB: The CR-M024AC2 pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 24 V AC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 12 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614498121
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
24 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 12 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 12 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 12 A
Rated Operational Current DC-13 (Ie)
(24 V) 2.5 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-M range, except 125 V versions
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614373138
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712649
E-Number (Norway)
4187357
E-Number (Sweden)
4005330
Pluggable CR-M interface design enables fast relay swaps, reducing downtime and simplifying maintenance in busy control panels. This modular approach translates to lower service costs and quicker troubleshooting for plant operators. The relay's 24 V AC control coil and 2 c/o SPDT contacts allow you to consolidate multiple switching needs from a single input, cutting wiring complexity and enabling flexible machine control and interlock schemes. An integrated test button and LED indicator support rapid commissioning and ongoing status checks, helping technicians verify energization without external test rigs. With IP40 protection and a wide operating range (-40 to +55 C, up to 2000 m), the unit delivers reliable performance in harsh environments and lifts panel reliability. Compatibility with standard sockets, logic sockets, pluggable function modules, holders, and markers accelerates large-scale installations and inventory standardization.
Get a Quick Quote for a ABB 1SVR405611R0000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405611R0000?
Enquire Now
FAQs
It is designed to plug into the ABB CR-M socket family and snap onto a standard DIN rail, delivering a compact, modular control solution. This arrangement supports quick relay replacement, simplifies panel layouts, and minimizes downtime during maintenance or upgrades. Ensure the selected socket type matches your control system configuration.
The device uses a 24 V AC control coil and provides 2 c/o SPDT contacts with a 250 V AC rating at up to 12 A. DC-branch ratings include 24 V DC up to 12 A (DC-12) and 24 V DC up to 2.5 A (DC-13 at 24 V, 0.1 A at 250 V). This supports mixed load applications and flexible control schemes.
The CR-M series carries CE, UKCA, UL/CSA, UR, cUR, CCC, CQC, and other declarations, along with RoHS compliance. These certifications support global deployments in automotive, industrial, and process control environments, ensuring regulatory readiness across regions.
Mount on a DIN rail using standard CR-M sockets and accessories, and operate within the specified ambient range of -40 to +55 C (storage -40 to +85 C) and up to 2000 m altitude. The IP40 rating provides protection against solid ingress, and the integrated test function facilitates commissioning and verification before full-scale operation.
Apply in machine control, signaling, interlocking, and automation panels where compact, modular relays are advantageous. The plug‑in design reduces maintenance time, lowers spare-part variety, and minimizes wiring complexity, delivering faster commissioning, easier fault isolation, and lower total cost of ownership in high-volume control installations.
