ABB 1SVR405611R2100 Pluggable Interface Relay - IP40
Part Number: 1SVR405611R2100
Quick Summary
The ABB 1SVR405611R2100 Pluggable Interface Relay enables plug-in control of field signals for modular automation panels. Engineers frequently face long wiring runs, difficult troubleshooting, and limited testability inside live cabinets. This family carries CE and UL 508 certifications and RoHS compliance, delivering immediate regulatory readiness for global machine builders. Designed for DIN rail mounting with built-in LED indicator and a test button, it speeds commissioning and minimizes misoperation. With two SPDT outputs at 250 V AC and 12 A, plus a 120 V AC control supply, it offers flexible control of sensors, relays, and actuators. Compact dimensions and compatibility with standard ABB sockets and accessories support scalable automation architectures while reducing panel footprint.
Product Information
Extended Description

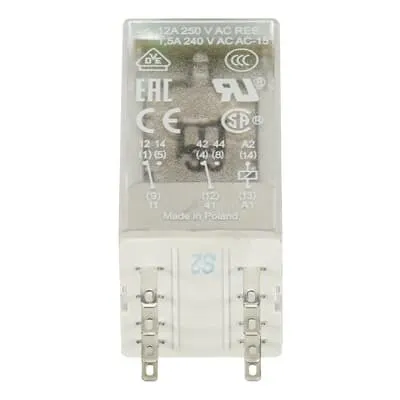

1SVR405611R2100 ABB: The CR-M120AC2L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 120 V AC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 12 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614497254
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
120 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 12 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 12 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 12 A
Rated Operational Current DC-13 (Ie)
(24 V) 2.5 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-M range, except 125 V versions
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614373282
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712692
E-Number (Norway)
4187393
Feature: Pluggable interface relay design that snaps into a CR-M socket for a compact, plug-in installation. Business impact: minimizes spare parts, simplifies replacement, and reduces field downtime during maintenance. Application: ideal for modular automation panels where quick swap-outs and reliable performance are essential. Feature: Integrated LED indicator and built-in test button provide immediate feedback and manual actuation. Business impact: accelerates commissioning, simplifies fault finding, and ensures accurate coil energization before full system bring-up. Application: on-site testing of control circuits, sensors, and interlocks during start-up. Feature: 2 c/o SPDT outputs rated 250 V AC at 12 A, with AC-12 and DC-12 current ratings. Business impact: enables multi-load switching from a single input, reducing wiring complexity and component count. Application: control of actuators, solenoids, and indicator circuits in contact- and valve-driven automation. Feature: Flat-pin terminal connections and 21.2 mm width, 35.6 mm height, 27.5 mm depth; IP40 protection and 1 mounting position. Business impact: predictable installation footprint and compatibility with existing DIN rail infrastructure. Application: rapid integration into panel layouts and workflows with standard sockets, logic sockets, and markers. Feature: Broad certification suite including CE, UL 508, UKCA, UR, EAC, CCC, CQC, VDE, and RoHS compliance. Business impact: supports multi-region deployments with regulatory peace of mind. Application: international machines, panel builders, and OEMs requiring verified safety and environmental compliance. Feature: Operation from -40 to +55 °C with storage -40 to +85 °C and altitude up to 2000 m without derating. Business impact: resilience in harsh industrial environments. Application: outdoor or factory floor installations with variable temperatures. Feature: Compatibility with standard ABB sockets, logic sockets, pluggable function modules, holders and markers. Business impact: lifecycle-friendly design that reduces design time and stocking needs. Application: scalable automation architectures across multiple lines.
