ABB 1SVR405611R3100 Pluggable Interface Relay - IP40
Part Number: 1SVR405611R3100
Quick Summary
CR-M230AC2L pluggable interface relay provides compact SPDT switching for DIN-rail automation. Installing in tight panels can be time-consuming, but this plug-in design reduces wiring and testing during commissioning. The device carries CE, UL/CSA, and UKCA certifications with IP40 protection, RoHS compliance, and broad standards support. In automation panels and machine controls, it enables reliable high-current switching with easy maintenance and quick replacement, delivering measurable efficiency gains for panel builders and end users alike.
Product Information
Extended Description

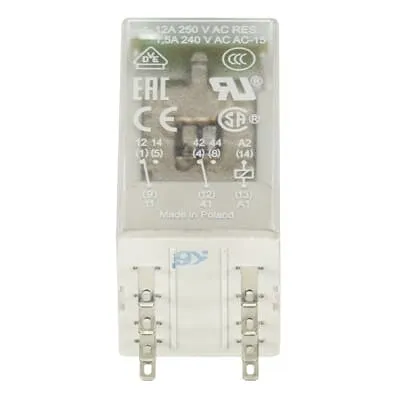

1SVR405611R3100 ABB: The CR-M230AC2L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 230 V AC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 12 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614497278
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
230 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 12 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 12 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 12 A
Rated Operational Current DC-13 (Ie)
(24 V) 2.5 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-M range, except 125 V versions
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614373299
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712706
E-Number (Norway)
4187394
E-Number (Sweden)
4005336
Feature: Plug-in pluggable design works with ABB CR-M sockets for seamless DIN-rail mounting. Benefit: Reduces installation time and field wiring complexity, lowering commissioning costs and downtime in automation projects. Application: Ideal for control panels and conveyor systems where fast replacement and clean wiring are critical. Feature: 230 V AC rated control supply with 2 c/o SPDT contacts rated at 250 V / 12 A. Benefit: Enables switching of multiple circuits from a single input, improving system flexibility and reducing component counts. Application: Machine control, process panels, and safety interlocks where robust switching is required. Feature: Integrated LED indicator and test button. Benefit: Simplified diagnostics and commissioning, enabling quick verification of coil energization and safe, manual actuation. Application: Factory floors, commissioning benches, and maintenance routines. Feature: IP40 protection, wide operating temperature range, and RoHS/UL/CSA/CE/UKCA certifications. Benefit: Suitable for harsh industrial environments with regulatory compliance, reducing risk during audits and long-term operations. Application: Harsh panel environments and multi-site deployments in automotive, packaging, and material handling. Feature: Standard sockets, logic sockets, and accessories for compatibility and scalability. Benefit: Streamlines spare parts planning and future upgrades, lowering total cost of ownership. Application: Modular automation cabinets and retrofit projects where ecosystem compatibility matters. Feature: Compact dimensions and 1 mounting position for dependable DIN-rail installation. Benefit: Space-efficient mounting in densely packed cabinets, improving panel density and airflow. Application: Panel builders and OEMs implementing compact automation solutions.
Get a Quick Quote for a ABB 1SVR405611R3100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405611R3100?
Enquire Now
FAQs
The CR-M230AC2L is designed to plug into ABB CR-M sockets and snap onto a DIN rail for secure, socket-based modularity. This compatibility enables quick field replacements and standardized panel configurations, reducing wiring complexity and the risk of incorrect connections during maintenance.
It operates with a 230 V AC control supply and provides 2 c/o SPDT contacts rated up to 250 V and 12 A. The device supports AC-12 and other common operating current ranges, enabling reliable switching of multiple circuits from a single input signal in automation panels.
Yes. The CR-M230AC2L includes an integrated LED to indicate coil energization and a built-in test button for manual actuator verification. These features simplify commissioning, troubleshooting, and validation of circuit functionality on the shop floor.
The device carries CE, UL/CSA, and UKCA certifications, with RoHS compliance. It is IP40 protected, operable from -40 to +55°C, and suitable for up to 2000 m altitude without derating. This combination supports regulatory compliance and reliability across industrial environments.
Using this pluggable relay reduces wiring complexity, enables rapid DIN-rail swap-outs, and lowers maintenance downtime. Compatible sockets and standardized dimensions support modular automation strategies, improving panel density, improving uptime, and delivering a favorable total cost of ownership in OEM and end-user installations.
