ABB 1SVR405611R4100 Pluggable Interface Relay - IP40
Part Number: 1SVR405611R4100
Quick Summary
The Pluggable Interface Relay provides compact, reliable control for industrial automation panels, enabling quick multi-point switching from a single input. Engineers often face signal wiring complexity and lengthy commissioning; a plug-in relay minimizes field wiring and speeds testing. It carries CE, UL/CSA, and UKCA certifications for compliant deployment, with IP40 protection suitable for in-cabinet use. With a 12 V DC rated coil, SPDT contacts, and DIN rail snap-on mounting, the solution improves installation speed and reduces panel footprint. This combination supports predictable maintenance windows and scalable deployment across multiple machines. Its compact form also reduces cabinet heat and improves airflow.
Product Information
Extended Description

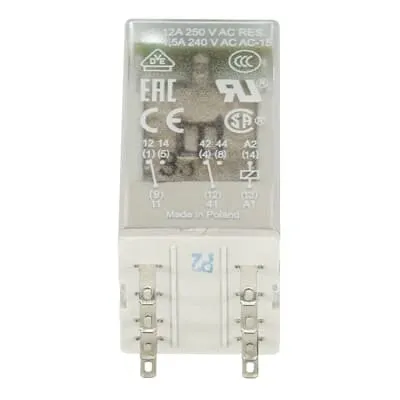

1SVR405611R4100 ABB: The CR-M012DC2L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 12 V DC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 12 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614497292
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
12 V DC
Rated Operational Voltage
250 V AC
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 12 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 12 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 12 A
Rated Operational Current DC-13 (Ie)
(24 V) 2.5 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-M range, except 125 V versions
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614373213
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712643
E-Number (Norway)
4187384
Feature: 12 V DC rated control supply. Business Impact: Enables direct compatibility with PLC outputs and low-power control networks, reducing the need for extra power supplies. Application: Ideal for panel-mounted automation where space and efficiency matter. Feature: 2 c/o SPDT contacts with a 250 V AC / 12 A rating. Business Impact: Lets you switch multiple circuits from a single input, reducing wiring complexity and installation time. Application: Control multiple actuators or indicators from one control signal. Feature: Integrated test button and LED. Business Impact: Simplifies commissioning and ongoing diagnostics, cutting down startup time and fault detection. Application: Quick verification of relay energization on the shop floor. Feature: IP40 protection and broad certifications (CE, UL/CSA, UKCA). Business Impact: Improves regulatory compliance and reduces protection-related risk in cabinet environments. Application: Suitable for standard industrial enclosures and compliant deployments. Feature: DIN rail snap-on mounting with flat-pin terminals. Business Impact: Speeds installation, enables easy replacement, and minimizes panel footprint. Application: Popular in modular control panels and retrofit projects. Feature: RoHS-compliant with compatible accessories (sockets, markers). Business Impact: Supports sustainable procurement and streamlined maintenance planning. Application: Fits into existing ABB CR-M socket ecosystems for scalable deployments.
