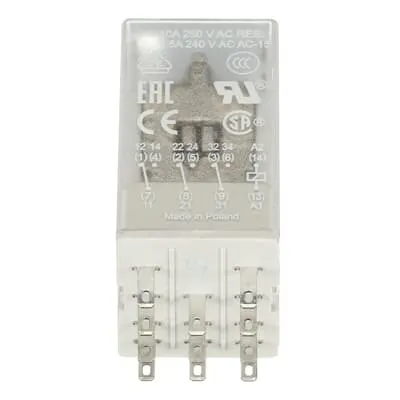

ABB 1SVR405612R0000 Pluggable interface relay - 24 VAC
Part Number: 1SVR405612R0000
Quick Summary
ABB 1SVR405612R0000 is a pluggable interface relay designed for compact control panels and DIN-rail automation. Engineers often face tight space and difficult field replacements; this pluggable relay simplifies maintenance by snapping into an ABB CR-M socket for quick swaps. The product family supports common industrial certifications and safety practices, with emphasis on reliable operation in control circuits. CE-compliant approaches and standard DIN-rail mounting enable smooth integration in automated equipment. By combining ease of installation with robust electrical performance, this solution delivers value through improved uptime, reduced maintenance effort, and predictable lifecycle costs.
Product Information
Extended Description
1SVR405612R0000 ABB: The CR-M024AC3 pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 24 V AC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRAPR001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
0 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHNOR001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CLABB001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Note
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Storage Location
4001
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
COABB001EXPU
Storage Location
4001
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
0 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEAPRMLCEXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DKSER001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DUABB001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DUABB003EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EESER001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
ESATD001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Note
No
Product Availability Class
Standard delivery time
Lead Time
27 day
Country of Origin
Poland (PL)
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
0 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
FISER001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
FRAUT001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GRABB001EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
INABBRLCEXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
ITIND002EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
NLABB021EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
0 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
NOATDRLCEXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND002EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
TRDMD001EXPU
Storage Location
4001
Country of Origin
Poland (PL)
Criticality
No
Lead Time
27 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB251EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
Lead Time
35 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USSVCEXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
Poland (PL)
Criticality
No
Lead Time
0 day
Made To Order
No
Note
No
Product Availability Class
Standard delivery time
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
ZATAD021EXPU
Storage Location
4001
Warranty Return
Product under warranty must be returned
EAN
4013614497445
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
24 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
3 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2.5 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-M range, except 125 V versions
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614373312
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712651
E-Number (Norway)
4187368
E-Number (Sweden)
4005339
Feature: 24 V AC control supply with 3 c/o SPDT output (250 V / 10 A). Business Impact: Enables multi-circuit switching from a single input, reducing wiring complexity and panel footprint. Application: Ideal for compact machine control and signaling in automated lines. Feature: Pluggable CR-M compatibility for snap-on DIN-rail installation. Business Impact: Speeds installation and simplifies field replacements, minimizing downtime. Application: Used in modular control enclosures where quick relay replacement is beneficial. Feature: Integrated test button and LED indicator. Business Impact: Facilitates easy, on-site testing and visual status checks during commissioning and maintenance. Application: Critical for commissioning procedures on new lines and during routine checks. Feature: Compatibility with standard sockets, logic sockets, pluggable function modules, holders and markers. Business Impact: Provides flexible customization and future-proofing; reduces enclosure rework. Application: Supports scalable control architectures in factory automation. Feature: Miniature, low-profile design with reliable contacts. Business Impact: Improves space efficiency without compromising switching capability, lowering unit costs per channel. Application: DIN-rail mounted control panels requiring dependable SPDT signaling. Industry Context: Suitable for machine builders, panel manufacturers, and systems integrators seeking proven ABB interfaces with straightforward installation and maintenance.
Get a Quick Quote for a ABB 1SVR405612R0000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405612R0000?
Enquire Now
FAQs
To install, align the 1SVR405612R0000 with a compatible ABB CR-M socket, then snap the combination onto a DIN rail for secure fixation. Ensure the coil rating of 24 V AC matches your control circuit and verify the SPDT outputs are wired to the target loads. Use standard sockets or logic sockets and attach markers as needed for clear identification. This approach minimizes wiring errors and speeds commissioning in control panels.
The CR-M024AC3 has a 24 V AC control coil and a 3-c/o SPDT output configuration. Contacts are rated to switch up to 250 V at 10 A, enabling multiple circuits from a single input. This combination provides reliable switching for signaling and interlocking tasks in compact control environments, while maintaining safety margins for typical industrial loads.
Yes, the relay is designed for DIN-rail mounting via the CR-M socket, delivering a compact footprint suitable for space-constrained panels. While specific environmental ratings are not stated here, ABB’s pluggable interface relays are commonly used in standard automation environments with proper enclosure protection. For harsh environments, verify enclosure IP ratings and ambient temperature specifications in the accompanying datasheet and ensure compatible wiring practices.
Before deployment, confirm CE conformity and any region-specific approvals required for your installation. Also verify compatibility with your control system’s safety and interlocking requirements. While the data provided does not enumerate all certifications, ABB products of this type typically align with common industrial standards; always consult the latest ABB datasheet or contact ABB support for exact certification details for your project.
The pluggable design reduces downtime by enabling quick replacement without removing the entire module from the panel. The built-in test button and coil indicator facilitate rapid commissioning and on-going diagnostics, cutting maintenance labor. With modular, swappable relays and compatible sockets, you can reconfigure control logic with minimal wiring changes, leading to lower total cost of ownership and faster deployments in scalable automation projects.
