ABB 1SVR405612R2000 Pluggable interface relay - IP40
Part Number: 1SVR405612R2000
Quick Summary
CR-M120AC3 pluggable interface relay enables modular control of industrial circuits in compact DIN rail installations. This plug-in design reduces wiring complexity and speeds commissioning by allowing quick relay swaps without rewiring. It carries CE and UL/CSA approvals and an IP40 rating, ensuring safe, compliant operation in European and North American panels. Designed for DIN-rail mounting with compatible sockets and modules, it streamlines spare parts stocking and reduces maintenance downtime, boosting overall equipment efficiency.
Product Information
Extended Description

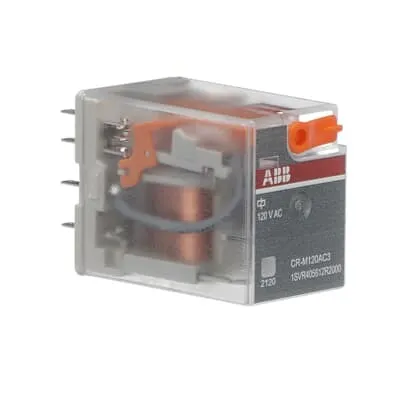

1SVR405612R2000 ABB: The CR-M120AC3 pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 120 V AC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614497483
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
120 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
3 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2.5 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-M range, except 125 V versions
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614373374
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712693
E-Number (Norway)
4187371
The CR-M120AC3 is a pluggable miniature interface relay that plugs into ABB CR-M sockets, enabling fast field replacement and minimal downtime when servicing automated panels. This directly reduces maintenance costs and project lead times, while maintaining reliable control of connected circuits. Its 120 V AC rated control supply and 250 V AC, 10 A SPDT output support multi-circuit switching from a single input, delivering tangible efficiency gains on high‑volume machines. The integrated test button and LED indicator simplify commissioning, troubleshooting, and status monitoring, reducing commissioning time by days in large installations. With flat-pin terminals and a compact footprint (DIN rail friendly), installation is straightforward, even in crowded control cabinets. ABB’s CR‑M ecosystem compatibility and available accessories keep spares organized, while RoHS and global certifications streamline compliance and procurement. The device maintains reliability across harsh environments, backed by IP40 protection and wide operating temperatures, which lowers long-term TCO. Compatibility with standard sockets, logic sockets, function modules, holders, and markers further optimizes part availability and stock management.
