ABB 1SVR405612R2100 Pluggable interface relay - IP40
Part Number: 1SVR405612R2100
Quick Summary
ABB 1SVR405612R2100 pluggable interface relay enables DIN-rail control of multiple circuits from a single input. When space is tight or downtime is costly, the plug-in design minimizes maintenance time by allowing quick field replacements. This device carries CE and UL/CSA declarations, plus UKCA and RoHS compliance, with IP40 protection for standard industrial environments. Compatible with ABB CR-M sockets and a range of accessories, it supports seamless DIN rail mounting and scalable expansion in automation panels. For system integrators, the combination of compact form factor, built-in LED status, and a dedicated test button translates to faster commissioning and reliable operation in machine control and process panels.
Product Information
Extended Description

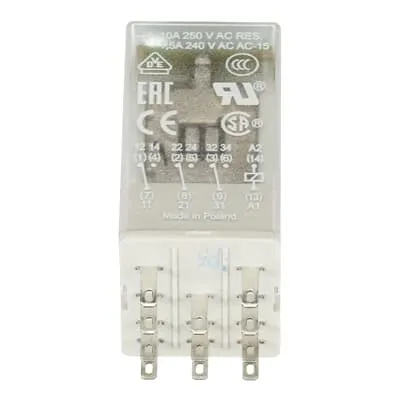

1SVR405612R2100 ABB: The CR-M120AC3L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 120 V AC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614497490
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
120 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
3 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2.5 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-M range, except 125 V versions
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614373466
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712694
E-Number (Norway)
4187404
The CR-M pluggable miniature interface relay snaps into a compatible CR-M socket, enabling quick replacement in the field and reducing downtime for critical machines. With three SPDT outputs and a 120 V AC control supply, it can switch multiple circuits from a single input, which simplifies control panel design and reduces wiring complexity in industrial applications. The built-in LED indicator provides immediate status feedback during energization, while the integrated test button supports straightforward commissioning and troubleshooting, cutting commissioning time and minimizing startup risk. Rated for 250 V AC at up to 10 A, it supports common machine control loads, enabling reliable operation in conveyors, feeders, and packaging lines. The compact footprint (21.2 mm width) and DIN-rail snap-on mounting ease integration in densely populated panels, improving overall panel density and serviceability. Compliance with CE, UL/CSA, UKCA, and RoHS ensures regulatory alignment and supply chain confidence, while IP40 and operating temp range of -40 to +55 °C expand usage in moderate industrial environments. The combination of plug-in convenience, documented accessories, and standardized sockets helps reduce total cost of ownership by enabling faster maintenance cycles and easier spare-part management.
