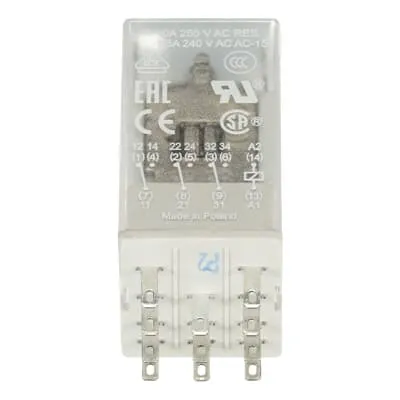

ABB 1SVR405612R7000 CR-M110AC3 Pluggable relay - IP40
Part Number: 1SVR405612R7000
Quick Summary
CR-M110AC3 pluggable interface relay enables reliable control of 110 V AC signals within DIN-rail automation enclosures. This compact, plug-in solution reduces commissioning time and simplifies field service by allowing quick swap-outs without rewiring. The design aligns with CE, UL 508 and RoHS requirements, supporting safe operation in mixed-control environments while maintaining IP40 protection. For engineers, this means lower downtime and easier maintenance in panel assemblies, machine controllers, and modular automation architectures. Leveraging ABB’s CR-M socket ecosystem, it also enables scalable, plug-and-play configurations for expanding control logic and multi-channel outputs in industrial applications.
Product Information
Extended Description
1SVR405612R7000 ABB: The CR-M110AC3 pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 110 V AC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
35 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
EAN
4013614497612
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
110 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
3 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2.5 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-M range, except 125 V versions
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614373350
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712679
E-Number (Norway)
4187370
Feature → Business Impact → Application: The CR-M110AC3 uses a 110 V AC control supply to drive a 3 c/o SPDT output with a 250 V / 10 A rating, enabling single-input control of multiple circuits. This translates to reduced wiring complexity and faster troubleshooting in packaging lines or material handling systems. Application typically includes modular control panels and machine automation where space is at a premium and reliability is critical. Feature → Easy plug-in compatibility → Installation advantage: Snap-on mounting onto a DIN rail with compatible ABB sockets accelerates start-up and simplifies maintenance, minimizing downtime during relay replacement or upgrades. Application: any ABB CR-M socket-enabled control cabinet, from robotics cells to conveyor systems. Feature → Integrated test button and LED indicator → Operational confidence and faster validation: The test function lets technicians manually actuate the relay, while the visual LED (where configured) confirms energization, speeding commissioning in test benches and start-up phases. Application: commissioning, factory acceptance tests, and routine preventative maintenance. Feature → Compact dimensions and IP40 rating → System efficiency and protection: With a compact footprint (21.2 mm wide) and IP40 enclosure, it fits tight control panels while providing reliable protection against dust and incidental contact. Application: space-constrained control panels, modular relays in compact automation blocks. Feature → Wide environmental tolerance and certifications → Compliance and resilience: Operation from -40 to +55 °C and RoHS/UL/CE compliant profiles ensure reliable performance across global deployments, including harsh factory floors. Application: outdoor-facing panels, refrigerated logistics, or high-ambient environments where regulatory compliance is mandatory.
Get a Quick Quote for a ABB 1SVR405612R7000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405612R7000?
Enquire Now
FAQs
Installing the CR-M110AC3 begins with selecting a compatible ABB CR-M socket that matches the relay’s flat-pin terminals. Simply plug the relay into the socket and snap the assembly onto the DIN rail in the panel. Ensure the control supply is 110 V AC and that the wiring follows the SPDT output routing to the load circuits. Verify connection integrity and perform a functional test using the relay’s test button.
The relay features a 110 V AC rated control supply and 3 c/o SPDT contacts. The output is rated to 250 V and 10 A, with AC-12 ratings up to 10 A at 230 V. These specifications support switching multiple auxiliary circuits from a single input signal while maintaining reliable performance in standard automation tasks.
Yes. The CR-M110AC3 is designed for industrial control applications and complies with major standards including UL 508 and CE, with RoHS conformity. Its IP40 protection and wide operating temperature range (-40 to +55 °C) make it suitable for machine control panels, automation cells, and process control where robust performance is required.
The relay carries CE marking and UL/CSA compatibility, along with RoHS compliance. These certifications indicate adherence to essential safety, electromagnetic compatibility, and environmental requirements, reducing compliance risk for global deployments and facilitating cross-border product qualification in regulatory regimes.
The plug-in design allows rapid relay replacement without rewiring, minimizing downtime during maintenance or upgrades. An integrated test function and visual status indicators further reduce commissioning time. Over the life of a control panel, this translates to lower labor costs, faster fault isolation, and a higher return on investment through improved equipment uptime.
