ABB 1SVR405612R8200 Pluggable interface relay - UL/CSA
Part Number: 1SVR405612R8200
Quick Summary
ABB 1SVR405612R8200 is a pluggable interface relay that switches multiple circuits from a single control signal in control cabinets. Engineers often struggle with bulky, hard-to-service relays, and this modular, plug-in design simplifies testing and replacements, reducing downtime. The device carries CE, UL/CSA, and UKCA certifications, along with RoHS compliance, plus IP40 protection for reliable DIN-rail operation. Its DIN-rail compatibility and CR-M socket ecosystem offer scalable, cost-effective automation solutions for panel builders and OEMs.
Product Information
Extended Description

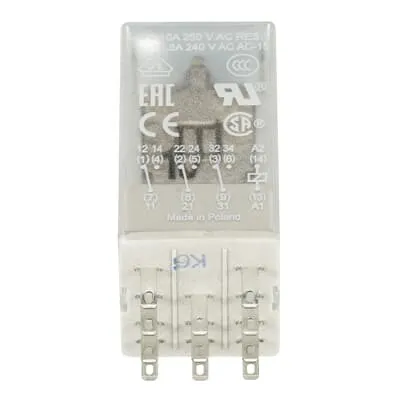

1SVR405612R8200 ABB: The CR-M125DC3 pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 125 V DC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Lithuania (LT)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHABB001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
35 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
EAN
4013614497650
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
125 V DC
Rated Operational Voltage
250 V AC
Output
3 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2.5 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614385292
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Norway)
4187786
Feature: Pluggable design that plugs into ABB CR-M sockets with snap-on DIN-rail mounting. Benefit: Reduces installation time and wiring errors while enabling quick replacement of the relay module without disturbing the socket or wiring. Application: Ideal for control panels in packaging lines and machine automation where rapid maintenance is essential. Feature: 125 V DC rated control supply with 3 c/o SPDT outputs rated at 250 V / 10 A. Benefit: Handles multiple loads from a single input, improving control efficiency and reducing channel count. Application: Central control relays for fans, conveyors, and valve actuation in industrial automation. Feature: Integrated test button and LED indicator. Benefit: Facilitates on-site testing and commissioning with immediate visual feedback, lowering commissioning time. Application: Factory acceptance testing and field installation checks. Feature: Compatibility with standard ABB sockets, logic sockets, and modular accessories. Benefit: Streamlines retrofits and upgrades, protecting existing investments while enabling future expansion. Application: OEM panel builds and upgrade projects requiring modular modularity. Feature: Robust environmental and electrical specs including IP40, -40 to +70 C operation, and 230 V AC/24 V DC compatibility. Benefit: Ensures reliable operation across harsh environments and diverse control scenarios, reducing failure rates. Application: Outdoor or harsh indoor panels, food and packaging equipment, and process automation. Feature: Compliance footprint including CE, UL/CSA, UKCA, and RoHS. Benefit: Eases regulatory approvals and supplier audits while supporting sustainable product design. Application: Global deployments across European and North American markets.
