ABB 1SVR405612R8300 Pluggable Interface Relay - UL 508
Part Number: 1SVR405612R8300
Quick Summary
ABB 1SVR405612R8300 pluggable interface relay is a compact, DIN-rail mounted device that switches multiple circuits from a single control input in control cabinets. This modular approach reduces wiring complexity and accelerates deployment, minimizing commissioning time. Engineered for rugged industrial environments, the relay carries key certifications such as UL 508, CE, and an IP40 enclosure to support safe operation across global markets. By integrating seamlessly with ABB CR-M sockets, it enables scalable, maintainable control architectures while delivering reliable status indication and straightforward troubleshooting. For engineers and procurement teams, the combination of plug-and-play installation, robust ratings, and clear diagnostics translates into lower total cost of ownership and faster project delivery.
Product Information
Extended Description

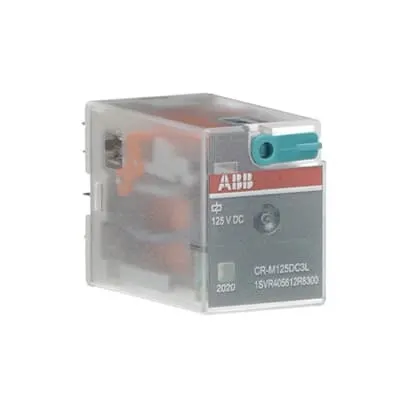

1SVR405612R8300 ABB: The CR-M125DC3L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 125 V DC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614497667
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
125 V DC
Rated Operational Voltage
250 V AC
Output
3 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2.5 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614385308
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Norway)
4187787
Feature → Business Impact → Application: The CR-M125DC3L pluggable interface relay plugs into an ABB CR-M socket and snaps onto a DIN rail, delivering a modular solution that reduces downtime during maintenance and part replacement, making it ideal for dense automation panels. This 125 V DC coil drives 3 c/o SPDT outputs with a 250 V AC, 10 A rating, enabling multi-circuit control from a single input signal and supporting compact, centralized control logic in machine builders and process lines. The integrated LED provides immediate visual status, while the built-in test button simplifies commissioning and verification without dedicated testing rigs. With flat-pin terminals and a compact footprint (21.2 mm wide, 35.6 mm high, 27.5 mm deep), it fits tight panel layouts and eases retrofits in existing installations. Compatibility with standard sockets, holders, and markers reduces inventory and accelerates spares management. The unit tolerates -40 to +70 °C and up to 2000 m altitude without derating, aligning with harsh industrial environments. RoHS compliance and broad certifications (UL 508, CE, UKCA) support global sourcing and regulatory alignment, while the 10 A AC-12/230 V rating ensures reliable loads for signaling, interlocking, and control logic without oversizing the drive. Its compatibility with CR-M sockets and DIN-rail mounting provides a proven workflow for modular automation so technicians can rapidly scale and service control cabinets, minimizing changeover times and maximizing uptime.
