ABB 1SVR405613R0100 Interface Relay - IP40, 24 V AC
Part Number: 1SVR405613R0100
Quick Summary
ABB 1SVR405613R0100 Interface Relay is a pluggable relay for DIN rail control of multiple circuits. Wiring complexity and maintenance downtime challenge system reliability during commissioning and routine servicing. It carries CE and UKCA approvals, UL/CSA listings, and RoHS compliance, delivering regulatory assurance for European and North American panels. Its compatibility with ABB CR-M sockets and standard DIN rail accessories simplifies upgrades, reduces spare parts mismatch, and shortens changeovers. This translates to lower lifecycle costs and faster time-to-value for machine builders and end users.
Product Information
Extended Description

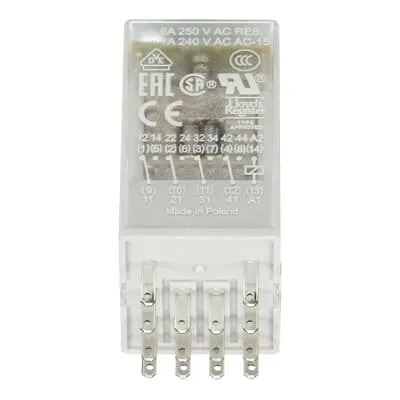

1SVR405613R0100 ABB: The CR-M024AC4L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 24 V AC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614497704
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
24 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
4 c/o (SPDT) contacts
Output Signal
250 V / 6 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Operational Current AC-15 (Ie)
(120 V) 1.5 A | (230 V) 1 A
Rated Operational Current DC-12 (Ie)
(24 V) 6 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-M range, except 125 V versions
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614373589
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712654
E-Number (Norway)
4187412
E-Number (Sweden)
4005351
Feature: 4 c/o SPDT output. Business Impact: Enables switching of multiple circuits from a single input, reducing I/O wiring complexity and panel footprint. Application: Used in control panels and small machines where compact, reliable signal routing is required. Feature: 24 V AC rated control supply. Business Impact: Aligns with common automation/control architectures, improving compatibility and reducing power-supply diversity. Application: Ideal for standard industrial PLC inputs and sensing circuits. Feature: Pluggable into CR-M socket with DIN rail snap-on mounting. Business Impact: Facilitates rapid deployment and easy field replacement, minimizing downtime during maintenance. Application: Suitable for modular automation lines and retrofit projects. Feature: Integrated test button and LED indicator. Business Impact: Improves commissioning speed and fault isolation without external testing tools. Application: On-machine diagnostics and startup validation. Feature: 250 V AC output rating, 6 A per contact, IP40 enclosure. Business Impact: Supports reliable control of medium-power loads with robust protection. Application: General-purpose motor control, valve actuation, and signaling in industrial environments. Feature: Wide operating temperature range -40 to +55 °C. Business Impact: Ensures dependable performance in harsh environments and production floors. Application: Food and beverage lines, packaging, and material handling where temperature excursions occur. Feature: DIN rail compatibility with CR-M accessories. Business Impact: Streamlines harmonized installation across multi-socket systems and reduces training needs. Application: OEM panels, retrofits, and scalable machine architectures.
