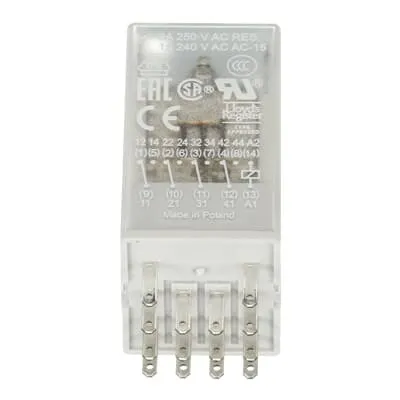

ABB 1SVR405613R3000 Pluggable interface relay - IP40
Part Number: 1SVR405613R3000
Quick Summary
The ABB 1SVR405613R3000 pluggable interface relay enables reliable control interfacing for modular automation systems. This compact, plug-in design supports quick replacement and clean DIN rail mounting in modern control panels. Engineers often face downtime during maintenance; a plug-in relay like this minimizes disruption by enabling rapid swap-out and testing with an integrated LED indicator and manual test button. It carries CE, UL/CSA, and UKCA certifications (along with RoHS compliance) to support global deployments. Designed for ABB CR-M sockets, it scales with your IO needs and supports an efficient, cost-effective maintenance strategy across multi-panel installations.
Product Information
Extended Description
1SVR405613R3000 ABB: The CR-M230AC4 pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 230 V AC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Switzerland (CH)
Lead Time
62 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHABB001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
35 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Country of Origin
India (IN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
INABB003EXPU
Warranty Return
Product under warranty must be returned
EAN
4013614497759
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
230 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
4 c/o (SPDT) contacts
Output Signal
250 V / 6 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Operational Current AC-15 (Ie)
(120 V) 1.5 A | (230 V) 1 A
Rated Operational Current DC-12 (Ie)
(24 V) 6 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-M range, except 125 V versions
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614373565
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712709
E-Number (Norway)
4187383
E-Number (Sweden)
4005355
Feature: 230 V AC rated control supply → Business Impact: Broad compatibility with common automation controllers reduces engineering effort and stock diversity → Application: Control panels and machines powered by standard 230 V AC logic. Feature: 4 c/o SPDT outputs rated to 250 V / 6 A → Business Impact: You can switch multiple circuits from a single input, cutting wiring and panel space → Application: Machine safety interlocks and I/O multiplexing in compact panels. Feature: Pluggable into CR-M socket with DIN rail snap-on mounting → Business Impact: Fast field replacement and scalable modularity minimize downtime and spare parts costs → Application: DIN rail control cabinets and modular automation systems. Feature: Integrated test button and status LED → Business Impact: Simplified commissioning and on-site fault finding reduces commissioning time by eliminating separate test tooling → Application: Commissioning of new install and routine maintenance checks. Feature: IP40 rating and wide operating temperature range (−40 to +55 °C) → Business Impact: Reliable operation in standard industrial environments without excessive derating → Application: Panel installations in manufacturing plants with variable ambient conditions. Feature: Compact dimensions and available CR-M accessories (sockets, holders, markers) → Business Impact: High-density installations with clear labeling improve maintenance speed and traceability → Application: Space-constrained control rooms and multi-relay configurations.
Get a Quick Quote for a ABB 1SVR405613R3000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405613R3000?
Enquire Now
FAQs
Begin by selecting a CR-M socket compatible with the 1SVR405613R3000. Insert the relay into the socket and snap the assembly onto the DIN rail. Ensure the control supply is 230 V AC and verify connection of the four SPDT contacts. The integrated LED helps confirm energization, while the test button facilitates quick commissioning checks without external tools.
The relay operates with a rated control supply voltage of 230 V AC. It provides 4 c/o SPDT contacts with an output rating of 250 V / 6 A. Rated operational current for AC-12 at 230 V is 6 A, enabling reliable switching of multiple circuits from a single input signal in typical automation circuits.
Yes. It is rated IP40 and supports ambient operating temperatures from −40 °C to +55 °C, making it suitable for many industrial control panel applications. Its compact form factor and DIN rail mounting also help maximize panel density without compromising reliability in standard manufacturing environments.
This relay carries CE, UL/CSA, and UKCA certifications, along with RoHS compliance and DoC references. These approvals support global market access, ensuring safety, electrical compatibility, and environmental compliance across Europe, North America, and beyond, which is essential for multi-site deployments.
The pluggable design enables rapid field replacement, reducing downtime during maintenance. The integrated test button and LED enable quick diagnostics, lowering commissioning time and service costs. Over time, modular spares and CR‑M socket compatibility improve MTBF metrics and return on investment in large automation installations.
