ABB 1SVR405613R3100 Pluggable interface relay UL 508
Part Number: 1SVR405613R3100
Quick Summary
ABB 1SVR405613R3100 Pluggable interface relay is a compact, plug‑in control relay designed for DIN rail panels in automation environments. Engineers often grapple with downtime and cumbersome wiring during replacements; this device enables fast swap‑out through a snap‑on CR‑M socket and includes a built‑in LED for immediate status checks. It carries CE marking, UL/CSA listings, and RoHS compliance, ensuring safe, regulatory compliant installation with minimal risk. Designed for modular ABB CR‑M sockets, it scales easily within control architectures, reducing wiring density and maintenance effort while delivering reliable signaling for machine and process control.
Product Information
Extended Description

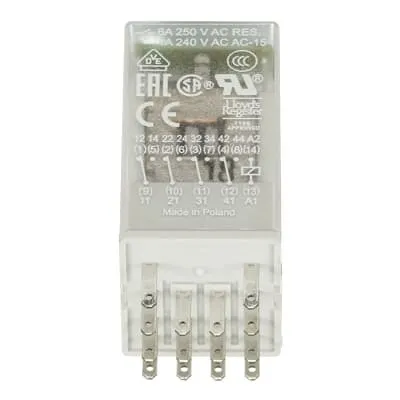

1SVR405613R3100 ABB: The CR-M230AC4L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 230 V AC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU | ZATAD024EXPU
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Country of Origin
India (IN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
INABB003EXPU
Warranty Return
Product under warranty must be returned
EAN
4013614497766
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
230 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
4 c/o (SPDT) contacts
Output Signal
250 V / 6 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Operational Current AC-15 (Ie)
(120 V) 1.5 A | (230 V) 1 A
Rated Operational Current DC-12 (Ie)
(24 V) 6 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-M range, except 125 V versions
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614373657
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712710
E-Number (Norway)
4187416
E-Number (Sweden)
4005356
Feature → Business Impact → Application: The pluggable design with a dedicated CR‑M socket allows quick replacement on the DIN rail, dramatically reducing downtime during maintenance windows and panel upgrades. This translates to higher line availability in manufacturing environments and lower service costs for end users. Application: use in automated lines where rapid fault isolation and fast reconfiguration are essential. Feature → Business Impact → Application: Integrated test button and LED indicator provide immediate visual feedback and manual actuation without wiring changes, accelerating commissioning and diagnostics while improving operator confidence. Application: machine control panels requiring clear status indication and easy testing during setup. Feature → Business Impact → Application: 230 V AC rated control with 4 c/o SPDT outputs rated 250 V / 6 A offers versatile switching for multiple circuits, enabling compact control of interlocks, signaling, and discrete automation tasks. Application: multi‑circuit control in packaging, material handling, and process lines. Feature → Business Impact → Application: IP40 protection and robust DIN rail mounting deliver reliable performance in typical cabinet environments, withstanding industrial temperatures (−40 to +55 °C) and high mounting density. Application: panel builders needing durable, space‑efficient relays. Feature → Business Impact → Application: Wide regulatory approvals including CE, UL/CSA, and RoHS support compliance programs and supplier audits, reducing certification lead times. Application: regulated industries such as machinery and electrical equipment manufacturing. Feature → Business Impact → Application: Broad compatibility with standard ABB sockets, holders, and markers ensures straightforward integration into existing CR‑M ecosystems, lowering installation costs and risk of mis‑wiring. Application: retrofit projects and scalable automation architectures.
