ABB CR-M012DC4L Pluggable Interface Relay - IP40
Part Number: 1SVR405613R4100
Quick Summary
ABB CR-M012DC4L pluggable interface relay provides compact control for modular automation in panel environments. Engineers often face wiring clutter and downtime during replacement; this pluggable design minimizes disruption. It carries CE, UL/CSA, and UKCA approvals, plus RoHS compliance and IP40 protection, ensuring safe operation in standard control cabinets. By enabling quick swaps on a DIN rail and with built-in LED indicators, it delivers reduced maintenance time and improved changeover reliability. Designed for panel builders and OEMs, it supports reliable diagnostics and simple stocking.
Product Information
Extended Description

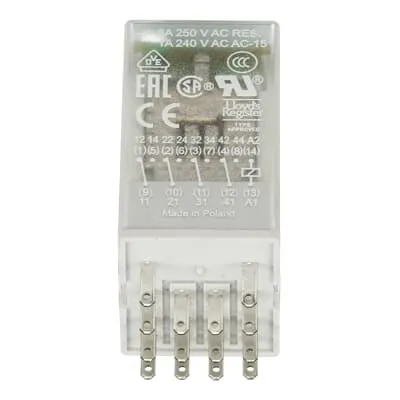

1SVR405613R4100 ABB: The CR-M012DC4L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 12 V DC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614497780
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
12 V DC
Rated Operational Voltage
250 V AC
Output
4 c/o (SPDT) contacts
Output Signal
250 V / 6 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Operational Current AC-15 (Ie)
(120 V) 1.5 A | (230 V) 1 A
Rated Operational Current DC-12 (Ie)
(24 V) 6 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-M range, except 125 V versions
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614373572
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712647
E-Number (Norway)
4187406
Pluggable CR-M interface with snap-on DIN rail mounting enables rapid relay replacement without rewiring, reducing commissioning time and maintenance costs. This is particularly valuable for modular machine controllers and panel builders needing quick replacement during fault isolation. The device combines a 12 V DC control coil with 4 c/o SPDT outputs rated up to 250 V AC / 6 A, offering flexible control of multiple circuits from a single input and reducing component counts in automation panels. An integrated LED indicator and built-in test button streamline commissioning and diagnostics, enabling immediate verification of coil energization and contact status during start-up and routine service. Flat-pin terminal connections and a compact footprint simplify wiring harness design and stock management, while compatibility with standard sockets and ABB accessories speeds integration. Rugged environmental ratings IP40 and wide operating temperature range (-40 to +70 C) support reliable operation in harsh environments, with certifications like CE, UL/CSA, and UKCA easing regulatory approvals. Compatibility with the ABB CR-M ecosystem minimizes retraining and accelerates deployment across existing control architectures.
Get a Quick Quote for a ABB 1SVR405613R4100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405613R4100?
Enquire Now
FAQs
CR-M012DC4L is designed to plug into ABB CR-M pluggable sockets and snap directly onto a DIN rail for fast, tool-less mounting. It uses flat-pin connections compatible with standard CR-M accessories, enabling seamless integration into existing CR-M system installations and reducing the need for separate mounting hardware.
The relay coil is 12 V DC, with four SPDT outputs rated for up to 250 V AC at 6 A. It supports DC-12 operations up to 6 A and DC-13 up to 2 A at 24 V or 0.1 A at 250 V, with AC-12 ratings of 6 A at 230 V. This makes it suitable for signaling, interlocks, and control of moderate loads in automation panels.
Yes. It provides IP40 protection, operates from -40 to +70 C, and is rated for up to 2000 m altitude without derating. These conditions support robust performance in typical factory floors, machine rooms, and control cabinets, while maintaining safety and reliability as part of a DIN-rail mounted control solution.
The CR-M012DC4L carries CE and UKCA conformity, UL/CSA recognition, and RoHS compliance, along with related UL 508 and other safety certifications. These approvals help ensure regulatory compliance in global deployments and support safe integration into regulated industrial applications.
The pluggable architecture allows fast replacement of a faulty module without rewiring, minimizing downtime and maintenance costs. Built-in LED indicators and a convenient test button simplify commissioning and diagnostics, improving mean time to repair (MTTR) and enabling accurate fault isolation in production lines.
