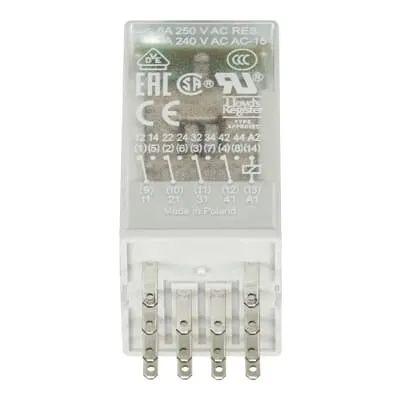

ABB 1SVR405613R4300 Pluggable interface relay - CE & UL/CSA certified
Part Number: 1SVR405613R4300
Quick Summary
ABB 1SVR405613R4300 Pluggable interface relay enables compact control of industrial signals in automation panels. Engineers often struggle with maintenance-heavy, non-pluggable modules that slow swaps and extend downtime. This device carries CE, UL/CSA, and UKCA certifications, plus IP40 protection, supporting safe, compliant installation in DIN rail cabinets. In practice, plug-in CR-M modules reduce spare parts and enable rapid field replacement, improving overall plant availability and maintenance efficiency. The combination of modularity, clear diagnostics via the built-in LED and test button, and robust certification makes this relay a reliable backbone for control cabinets.
Product Information
Extended Description
1SVR405613R4300 ABB: The CR-M060DC4L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 60 V DC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
EAN
4013614497803
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
60 V DC
Rated Operational Voltage
250 V AC
Output
4 c/o (SPDT) contacts
Output Signal
250 V / 6 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Operational Current AC-15 (Ie)
(120 V) 1.5 A | (230 V) 1 A
Rated Operational Current DC-12 (Ie)
(24 V) 6 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-M range, except 125 V versions
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614377440
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Norway)
4187409
Feature: Pluggable CR-M060DC4L with a 60 V DC coil and integrated LED. Business Impact: Enables quick replacement and fast visual status checks, reducing commissioning time and downtime. Application: Ideal for DC control logic in automation panels where rapid fault isolation is critical. Feature: Four SPDT contacts rated at 250 V AC and 6 A. Business Impact: Supports multi-circuit switching from a single input, increasing channel density and reducing component count. Application: Conveyor lines, packaging equipment and other multi-load control tasks. Feature: DIN rail snap-on mounting with ABB CR-M sockets. Business Impact: Streamlined assembly and serviceability, enabling modular cabinet design and easy spare-part management. Application: Standardized control cabinets with scalable I/O expansion. Feature: IP40 enclosure and operation from -40 to +70 °C. Business Impact: Reliable operation in demanding environments with minimal derating, lowering field failure risk. Application: Industrial environments, panel assemblies, and robotics interfaces. Feature: Comprehensive certifications (CE, UKCA, UL/CSA, cUR, LR, UR, EAC) and RoHS compliance. Business Impact: Global deployment without requalification, reducing procurement risk and lead times. Application: International factories and cross-border supply chains with strict compliance requirements.
Get a Quick Quote for a ABB 1SVR405613R4300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405613R4300?
Enquire Now
FAQs
Install the CR-M060DC4L by plugging it into an ABB CR-M socket and snapping the assembly onto a DIN rail. Ensure the coil is supplied with 60 V DC, then connect flat-pin wiring to the relay's outputs. Use the integrated test button to verify actuator operation and LED indicator to confirm energization during startup and maintenance cycles.
Coil voltage is 60 V DC. The relay provides four SPDT contacts with a 250 V AC rating and 6 A current per contact. Operational currents include DC-12 at 6 A (24 V), DC-13 up to 2 A at 230 V or 0.1 A at 250 V, and AC-12 up to 6 A at 230 V. Insulation voltage is 250 V with IP40 protection.
Yes. The four SPDT outputs allow multiple circuits to be controlled from a single input, increasing channel density and reducing wiring complexity. The 60 V DC coil integrates with standard control logic, while 250 V AC/6 A ratings handle common line loads. Built-in diagnostic features and modular sockets simplify maintenance on conveyors and packaging lines.
This relay carries CE, UKCA, UL/CSA, cUR, LR, UR, and EAC certifications, plus RoHS compliance. These credentials support European, UK, North American, and international deployments, streamlining supplier qualification and cross-border procurement. Documentation such as declarations of conformity and test reports further facilitate global compliance.
Plug-in modular relays enable rapid field replacement with minimal wiring, reducing downtime and maintenance labor. The built-in LED and test button speed fault isolation during commissioning and servicing, while compatible sockets and accessories simplify spares. Over time, this modular approach lowers total cost of ownership through faster repairs, easier stocking, and enhanced cabinet uptime.
