ABB 1SVR405613R8200 - CR-M125DC4 Pluggable Interface Relay - IP40
Part Number: 1SVR405613R8200
Quick Summary
CR-M125DC4 pluggable interface relay enables compact, plug-in control for DIN-rail automation systems. Engineers often wrestle with complex wiring and slow commissioning when swapping relays in crowded control panels. This ABB device carries CE and UL/CSA certifications and an IP40 enclosure rating, supporting safe operation and regulatory compliance. By combining a 125 V DC control supply with 4 c/o SPDT contacts rated up to 6 A, it reduces wiring, speeds maintenance, and improves reliability in machine control. The pluggable form factor optimizes lifecycle and inventory management for panel builders.
Product Information
Extended Description

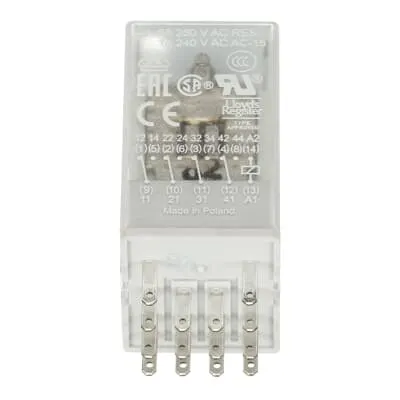

1SVR405613R8200 ABB: The CR-M125DC4 pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 125 V DC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Switzerland (CH)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHABB001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Country of Origin
Poland (PL)
Lead Time
28 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
DEUTS002EXPU
Warranty Return
Product under warranty must be returned
EAN
4013614497896
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
125 V DC
Rated Operational Voltage
250 V AC
Output
4 c/o (SPDT) contacts
Output Signal
250 V / 6 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Operational Current AC-15 (Ie)
(120 V) 1.5 A | (230 V) 1 A
Rated Operational Current DC-12 (Ie)
(24 V) 6 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614385315
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712908
E-Number (Norway)
4187788
