ABB 1SVR405613R8300 CR-M Pluggable interface relay - IP40
Part Number: 1SVR405613R8300
Quick Summary
ABB CR-M pluggable interface relay enables compact, plug-in control for DIN-rail automation systems. When replacing a failed module, downtime and wiring changes can bottleneck production; the plug-in design minimizes both. This device meets CE and UKCA conformity, UL 508 recognition, and CSA/LR certifications, ensuring robust global compliance. With a built-in LED, test button, and easy DIN rail installation, it delivers reliable, maintainable control—supporting scalable automation and reduced life-cycle costs. For engineers and procurement teams, the ABB CR-M family offers a practical balance of reliability, ease of maintenance, and traceable certifications across diverse markets.
Product Information
Extended Description

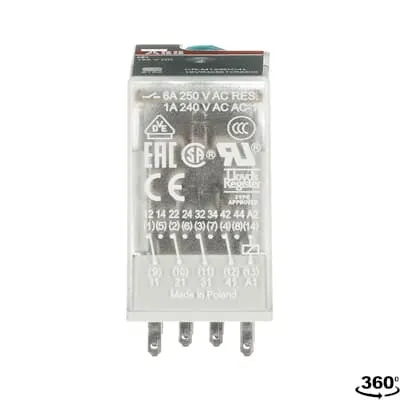

1SVR405613R8300 ABB: The CR-M125DC4L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 125 V DC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
EAN
4013614497902
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
125 V DC
Rated Operational Voltage
250 V AC
Output
4 c/o (SPDT) contacts
Output Signal
250 V / 6 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Operational Current AC-15 (Ie)
(120 V) 1.5 A | (230 V) 1 A
Rated Operational Current DC-12 (Ie)
(24 V) 6 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614385322
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Norway)
4187789
The 125 V DC control supply voltage is matched to common control schemes, enabling 4 c/o SPDT outputs that simplify circuit design and reduce the number of components needed, which translates into lower panel costs and faster commissioning. This translates to measurable business impact through reduced wiring errors and quicker start-up during machine resets or expansions. The pluggable interface into an ABB CR-M socket means modules can be swapped without disturbing the entire control circuit, cutting downtime and improving maintenance efficiency in mass production lines. The integrated test button and indicator LED provide immediate hand-on verification during commissioning and routine checks, decreasing diagnostic time and increasing first-pass acceptance in automated test benches. Flat-pin terminal connections simplify wiring harness integration, while DIN rail snap-on mounting accelerates installation and minimizes field wiring mistakes, boosting overall installation quality and reliability.
Get a Quick Quote for a ABB 1SVR405613R8300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405613R8300?
Enquire Now
FAQs
The CR-M125DC4L is designed to plug into a compatible ABB CR-M socket and snap onto a standard DIN rail. Ensure your panel uses flat-pin connections and that the socket is rated for 125 V DC control and 250 V AC output. Verify clearance for the LED indicator and test button, and confirm the socket and rail are properly grounded to prevent interference.
Key ratings include 125 V DC control supply, 250 V AC output with 4 c/o SPDT contacts, and 6 A maximum output current. The device supports AC-12/AC-15 and DC-12/DC-13 operation across specified voltages, with IP40 protection and a wide ambient range. These specs enable reliable switching of multiple circuits from a single control input in industrial panels.
Ideal for machine control panels, process automation, and safety interlock circuits, the CR-M125DC4L supports modular, scalable control where quick replacement is valuable. Its compact footprint, DIN-rail mounting, and integrated diagnostics make it suitable for automation cabinets, line start-ups, and maintenance-heavy environments where fast swaps minimize downtime.
The device carries CE and UKCA conformity, UL 508 and UR certifications, CSA, and LR certifications, plus RoHS compliance. This broad certification suite helps ensure regulatory compliance across Europe, North America, and other regions, reducing risk when integrating into multi-region manufacturing lines and enabling smoother audits.
Pluggable relays cut maintenance costs by reducing wiring complexity, enabling rapid replacements without rewiring, and shortening commissioning cycles. The LED indicator and test button speed diagnostics, while standardization across the CR-M family lowers spare parts variety. Over time, this translates into lower downtime, quicker upgrades, and a faster payback on automation investments.
