ABB 1SVR405614R1100 Pluggable Interface Relay - IP40
Part Number: 1SVR405614R1100
Quick Summary
ABB 1SVR405614R1100 Pluggable Interface Relay provides compact control interfacing for DIN-rail automation in machine panels. Engineers often struggle with quick replacement and diagnostics in control cabinets, and this plug-in design reduces downtime. Certified for UL 508 and CE, with RoHS-compliant materials and UKCA declarations to support global compliance. Its 24 V DC coil, integrated LED indicator, and built-in diode for surge suppression translate into faster commissioning and more reliable operation. In practice, customers benefit from tighter wiring control, easier field servicing, and scalable automation using standard ABB CR-M sockets and accessories.
Product Information
Extended Description

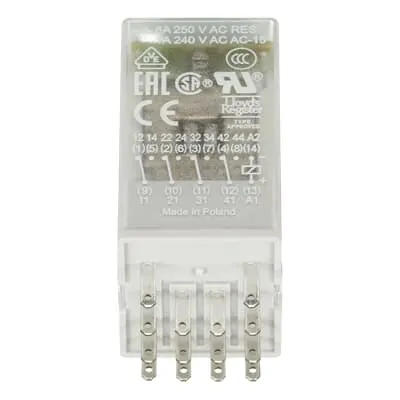

1SVR405614R1100 ABB: The CR-M024DC4LD pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 24 V DC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil, and a diode, for surge suppression. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614497933
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay with built in LED and Diode
Rated Control Supply Voltage (Us)
24 V DC
Rated Operational Voltage
250 V AC
Output
4 c/o (SPDT) contacts
Output Signal
250 V / 6 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Operational Current AC-15 (Ie)
(120 V) 1.5 A | (230 V) 1 A
Rated Operational Current DC-12 (Ie)
(24 V) 6 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-M range, except 125 V versions
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614383328
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
Feature: Pluggable CR-M interface relay design enables quick swaps in control cabinets. Business Impact: Reduces downtime and wiring complexity, accelerating maintenance tasks and enabling modular panel upgrades. Application: Machine control panels in automated lines. | Feature: 24 V DC rated control supply with 4 c/o SPDT outputs. Business Impact: Supports multiple circuit control from a single input, increasing channel availability while maintaining safety. Application: Industrial process interlocks and machine logic. | Feature: Integrated diode for surge suppression and LED indicator for coil energization. Business Impact: Improves fault detection and protects sensitive control electronics, with at-a-glance status during commissioning. Application: Real-time status monitoring in robotics and packaging lines. | Feature: Snap-on DIN rail mounting with flat-pin terminals. Business Impact: Streamlines installation, reduces assembly time, and ensures robust, vibration-resistant wiring. Application: Panel builders and OEM integrators deploying CR-M compatible components. | Feature: Wide operating range and compliance—IP40, -40 to +70 °C, 250 V insulation, UL/CSA and CE. Business Impact: Reliable performance in harsh industrial environments with global approvals, lowering risk and compliance overhead. Application: Heavy-duty automation environments and cross-border deployments.
Get a Quick Quote for a ABB 1SVR405614R1100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405614R1100?
Enquire Now
FAQs
The ABB CR-M pluggable interface relays are designed to plug into ABB CR-M sockets. For the 1SVR405614R1100, use the corresponding CR-M socket module and ensure a proper DIN-rail snap-on mounting. Compatible accessories include standard sockets, logic sockets, and pluggable function modules to support streamlined field replacements.
This relay operates with a 24 V DC control supply and provides four SPDT outputs rated at 250 V AC up to 6 A. DC-12 ratings are 6 A at 24 V, while DC-13 ratings are 2 A at 24 V and 0.1 A at 250 V. The device also features a diode for surge suppression and an LED indicator for status.
Yes. The unit is designed for snap-on DIN-rail mounting, with an IP40 protection rating and operation from -40 to +70 °C. It is built to withstand standard industrial conditions and supports installations up to 2000 m altitude without derating.
The CR-M range carries multiple certifications for global compliance, including UL 508, CSA, CE, UKCA, RoHS, UR, LR, VDE, EAC, and CCC/CQC in relevant regions. This broad certification footprint supports safe use in diverse markets and simplifies regulatory approvals for panel builders.
The plug-in design minimizes downtime by enabling quick relay swaps without rewiring. The integrated LED and test button expedite commissioning and diagnostics, while DIN-rail mounting and flat-pin terminals simplify installation and future upgrades. Overall, these features reduce maintenance time, improve panel reliability, and lower total cost of ownership in high-volume automation environments.
