ABB 1SVR405618R1400 CR-M Pluggable Interface Relay - UL 508
Part Number: 1SVR405618R1400
Quick Summary
ABB CR-M pluggable interface relay enables compact, plug-in control of multiple circuits in panel DIN rail installations. Wiring and testing traditional relays can be time-consuming and error-prone, leading to commissioning delays. This model carries CE, UL 508, and UKCA marks, with RoHS compliance and cUR safety attestations supporting global deployments. Built-in LED indicators and diode protection with gold-plated contacts boost reliability for small loads. The plug-in socket design simplifies field replacement, reduces downtime, and supports quick verification during commissioning. Operating across -40 to +70 C on a DIN rail, the device scales with robust control architectures to lower lifecycle costs.
Product Information
Extended Description

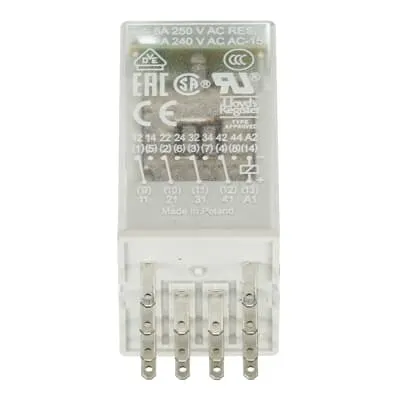

1SVR405618R1400 ABB: The CR-M024DC4LDG pluggable interface relay is a miniature relay with gold-plated contacts, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 24 V DC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Furthermore, the gold-plated contacts ensure contact reliability particularly necessary in applications where small currents and loads are to be switched. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614497988
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay with built in LED and Diode | Relay with built in LED and gold-plated contacts
Rated Control Supply Voltage (Us)
24 V DC
Rated Operational Voltage
250 V AC
Output
4 c/o (SPDT) contacts
Output Signal
250 V / 6 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Operational Current AC-15 (Ie)
(120 V) 1.5 A | (230 V) 1 A
Rated Operational Current DC-12 (Ie)
(24 V) 6 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-M range, except 125 V versions
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614401022
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Norway)
4187735
The 24 V DC control supply delivers reliable coil energization with tight voltage margins, reducing false activations and ensuring consistent performance across connected loads. This translates to fewer nuisance trips and smoother machine operation in automated panels, especially where supply fluctuations are common. The 4 c/o SPDT outputs enable wiring of multiple circuits from a single input, optimizing control cabinet footprint and reducing harness complexity. In practice, this supports compact machine control designs and faster wiring integration in high-density panels. Gold-plated contacts improve corrosion resistance and contact reliability when switching small currents, extending relay life and reducing maintenance intervals in harsh environments. Integrated LED and diode protection provide immediate visual status and protection against reverse polarity, simplifying commissioning and fault diagnostics. The plug-in socket design allows rapid replacement and minimal downtime, with broad accessory options for sockets, holders, and markers. Compliance with CE, UL/CSA, and UKCA marks plus RoHS conformity supports regulated industries and global deployments, while IP40 protection and wide operating temperature enable robust performance in factory floors and automation cabinets.
