ABB 1SVR405618R3100 Pluggable Interface Relay - Gold-Plated Contacts
Part Number: 1SVR405618R3100
Quick Summary
Pluggable interface relay ABB 1SVR405618R3100 is a compact control device designed for DIN-rail automation panels. Engineers often face lengthy maintenance cycles and wiring rework when fixed relays fail mid-installation; the pluggable design here minimizes downtime by enabling quick swaps. With CE conformity, UL 508 recognition, and RoHS compliance, this ABB relay meets essential safety and environmental standards for modern machinery. Integrated LED indicators, gold-plated contacts for reliable low-current switching, and seamless compatibility with ABB CR-M sockets speed commissioning and ensure long-term reliability in harsh industrial environments. From control cabinets to line-side protections, this module adds modularity and speed to your automation projects.
Product Information
Extended Description

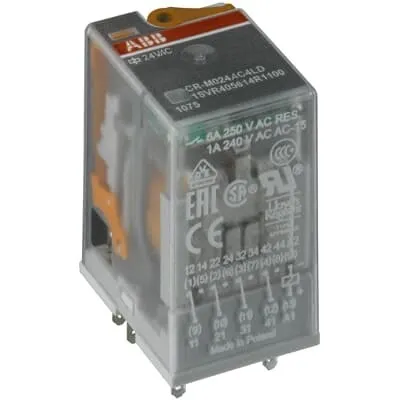

1SVR405618R3100 ABB: The CR-M230AC4LG pluggable interface relay is a miniature relay with gold-plated contacts, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 230 V AC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Furthermore, the gold-plated contacts ensure contact reliability particularly necessary in applications where small currents and loads are to be switched. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
EAN
4013614498015
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.2 mm
Product Net Height
35.6 mm
Product Net Depth / Length
27.5 mm
Product Net Weight
0.033 kg
Function
Pluggable miniature interface relay CR-M
Sub-Function
Relay with built in LED and gold-plated contacts
Rated Control Supply Voltage (Us)
230 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
4 c/o (SPDT) contacts
Output Signal
250 V / 6 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Operational Current AC-15 (Ie)
(120 V) 1.5 A | (230 V) 1 A
Rated Operational Current DC-12 (Ie)
(24 V) 6 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-M range
CQC Certificate
CQC Certificate, Interface Relays, CR-M, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-M
cUR Certificate
cUR_E244330
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-M, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-M range, except 125 V versions
Package Level 1 Units
box 10 piece
Package Level 1 Width
114 mm
Package Level 1 Depth / Length
50 mm
Package Level 1 Height
61 mm
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
4013614373749
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712711
E-Number (Norway)
4187427
E-Number (Sweden)
4005362
Feature 1: 230 V AC rated coil voltage. Business Impact: Directly compatible with common control circuits, reducing wiring complexity and enabling faster integration in panel builds. Application: Machine controllers and control cabinets that rely on standard 230 V AC coils. Feature 2: 4 c/o SPDT (Form C) outputs. Business Impact: Lets a single input drive multiple circuits, enabling efficient logic wiring and compact panel layouts. Application: Safety interlocks, signal routing, and interlocking schemes in automated lines. Feature 3: Gold-plated contacts. Business Impact: Improves contact reliability for low-current loads and minimizes contact resistance over time. Application: Precision sensing and small-load switching in harsh environments. Feature 4: Integrated test button and LED. Business Impact: Simplifies commissioning and on-site diagnostics, reducing bring-up time and troubleshooting costs. Application: Panel start-up, maintenance checks, and status indication. Feature 5: Pluggable into CR-M sockets with DIN-rail mounting. Business Impact: Enables rapid replacement, modular spares strategy, and simplified installation for maintenance teams. Application: Control panels in machine shops and production lines. Feature 6: IP40 enclosure and wide operating temperature. Business Impact: Meets typical indoor industrial environments, supporting -40 to +55 °C operation and up to 2000 m altitude without derating. Application: Indoor automation cabinets and factory floors where environmental controls are standard.
