ABB 1SVR405621R0000 Pluggable interface relay - IP40
Part Number: 1SVR405621R0000
Quick Summary
CR-U024AC2 pluggable interface relay is a universal signaling device for DIN-rail control panels. Engineers struggle with maintenance and testing of pre-wired relays in tight panel spaces. This ABB module carries CE and UKCA declarations, UL/CSA certification, RoHS compliance, and an IP40 rating for rugged industrial environments. By delivering a 24 V AC control input with two SPDT outputs and easy plug-in replacement, it reduces downtime and spare-parts complexity while supporting modular automation and efficient panel design. That combination of reliability, fast deployment, and accessible accessories supports faster time-to-value for machine builders and system integrators.
Product Information
Extended Description

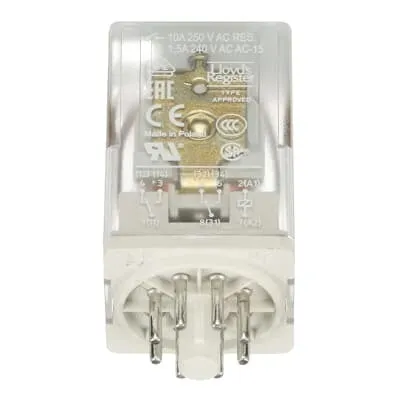

1SVR405621R0000 ABB: The CR-U024AC2 pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. CR-U relays may be plugged into CR-U sockets and this combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. CR-U relays have robust circular pin terminals, designed and manufactured to handle tough, repetitive-use applications and are more durable than standard relays.This relay operates with a 24 V AC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories.
EAN
4013614498350
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
35 mm
Product Net Height
54.4 mm
Product Net Depth / Length
35 mm
Product Net Weight
0.083 kg
Function
Pluggable universal interface relay CR-U
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
24 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Pin
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-U range
CQC Certificate
CQC Certificate, Interface Relays, CR-U, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-U, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
182 mm
Package Level 1 Depth / Length
77 mm
Package Level 1 Height
76 mm
Package Level 1 Gross Weight
0.87 kg
Package Level 1 EAN
4013614374005
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712763
E-Number (Norway)
4187459
E-Number (Sweden)
4005410
Feature: Pluggable CR-U architecture with socket compatibility enables quick plug-in replacement. Business Impact: reduces maintenance downtime and spare parts inventory. Application: modular automation in control panels. Feature: 24 V AC coil with 2 c/o SPDT outputs and 250 V/10 A switching capability. Business Impact: single input controls multiple circuits, improving wiring efficiency and reliability. Application: signaling, interlocking, and machine control. Feature: Integrated test button and LED indicator. Business Impact: simplifies commissioning and on-site verification, lowering startup risk. Application: factory acceptance testing and routine diagnostics. Feature: DIN-rail mounting with robust circular pin terminals and snap-on installation. Business Impact: faster, vibration-resistant installations with secure long-term connections. Application: panel builders and retrofit projects. Feature: Compact footprint 35 mm wide, 54.4 mm high, 35 mm deep; weight 0.083 kg. Business Impact: saves panel space and reduces overall enclosure weight. Application: space-constrained control cabinets. Feature: Broad certification and compliance (CE, UKCA, UL/CSA, RoHS, EAC, VDE). Business Impact: enables global procurement and regulatory alignment. Application: multinational manufacturing environments. Feature: Wide operating range (-40 to +55 °C, up to 2000 m altitude) and IP40 protection. Business Impact: dependable operation across typical industrial environments. Application: factory floors and machine enclosures in varying climates.
Get a Quick Quote for a ABB 1SVR405621R0000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405621R0000?
Enquire Now
FAQs
The CR-U024AC2 is a pluggable interface relay with two SPDT outputs driven by a 24 V AC coil, designed for DIN rail mounting. It is ideal for modular control panels, signaling circuits, and interlock logic where quick replacement and compact form factor reduce maintenance time and space requirements.
Install by snapping the relay into a CR-U socket mounted on the DIN rail. Connect the 24 V AC control to A1-A2 and wire the two SPDT outputs to the respective load circuits, observing 250 V AC at up to 10 A. The circular pin terminals provide robust connections suitable for vibration and frequent switching.
The relay is rated for DC-12 loads up to 10 A at 24 V (IE) and DC-13 ratings of 2 A at 24 V or 0.1 A at 250 V. For high-current DC switching, ensure your load is within these ratings and consider derating factors and contact wear in continuous DC service.
The device complies with CE and UKCA declarations, UL/CSA certifications, and RoHS conformity. It also carries EAC and VDE recognitions and is tested to CAN/CSA C22.2 No. 14, IEC/EN 61810-1, and UL 508. This broad certification supports global procurement and regulatory adherence.
An integrated test button and LED indicator provide immediate feedback on energization and contact status, simplifying commissioning and troubleshooting. This feature reduces commissioning time and helps technicians verify proper operation without external test equipment.
