ABB CR-U024DC2L Pluggable Interface Relay - IP40
Part Number: 1SVR405621R1100
Quick Summary
CR-U024DC2L pluggable interface relay delivers universal SPDT switching for control circuits in demanding industrial automation. Engineers often face wiring rigidity and downtime during module swaps; this relay snaps into CR-U sockets and mounts on a DIN rail for quick replacement. It carries CE, UL/CSA, and UKCA declarations with IP40 protection, making it suitable for indoor cabinet environments. This combination reduces spare-part inventory and simplifies testing, while the 24 V DC coil and 2 c/o contacts support compact, scalable control networks with clear diagnostics for reliable operation.
Product Information
Extended Description

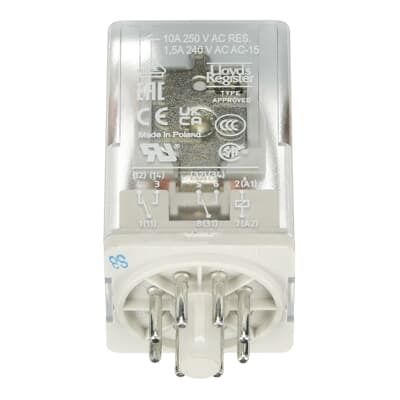

1SVR405621R1100 ABB: The CR-U024DC2L pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. CR-U relays may be plugged into CR-U sockets and this combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. CR-U relays have robust circular pin terminals, designed and manufactured to handle tough, repetitive-use applications and are more durable than standard relays.This relay operates with a 24 V DC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories.
EAN
4013614498381
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
35 mm
Product Net Height
54.4 mm
Product Net Depth / Length
35 mm
Product Net Weight
0.083 kg
Function
Pluggable universal interface relay CR-U
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
24 V DC
Rated Operational Voltage
250 V AC
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Pin
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-U range
CQC Certificate
CQC Certificate, Interface Relays, CR-U, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-U, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
182 mm
Package Level 1 Depth / Length
77 mm
Package Level 1 Height
76 mm
Package Level 1 Gross Weight
0.87 kg
Package Level 1 EAN
4013614374104
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712768
E-Number (Norway)
4187475
E-Number (Sweden)
4005413
The pluggable design integrates smoothly with CR-U sockets and DIN-rail mounting, enabling fast swaps and minimal panel downtime; this translates to tangible maintenance cost reductions and improved equipment availability in automation cabinets. The 24 V DC coil with a built-in LED indicator and a mechanical test button delivers immediate feedback during commissioning and routine checks, boosting confidence in control sequences and reducing trial-and-error testing time in the field. With two SPDT contacts rated up to 250 V AC and 10 A, you can reliably switch multiple circuits from a single input, improving wiring economy and system reliability for machine control and process interlocks. Durable circular pin terminals and rugged construction ensure long service life in repetitive-use environments, lowering replacement frequency and operational risk. Accessory ecosystems including standard sockets, logic sockets, and markers enable complete, plug-and-play installation with CAD files for accurate panel layout. RoHS compliance and extensive standards support assist with regulatory conformity in diverse markets. The device is compatible with 24 V DC control schemes commonly used in automation, enabling seamless integration into existing control architectures without extensive rewiring.
