ABB 1SVR405621R2000 Pluggable Interface Relay - IP40
Part Number: 1SVR405621R2000
Quick Summary
CR-U pluggable interface relay provides compact, plug-and-play control for DIN-rail panels in industrial automation. Users often struggle with wiring errors and lengthy commissioning when coordinating relays and sockets. This device carries CE and UKCA declarations along with UL/CSA compliance and RoHS conformity, and it achieves IP40 protection for safe operation in standard environments. With a 120 V AC control supply and 2 c/o SPDT outputs rated up to 250 V / 10 A, it delivers reliable switching across multiple circuits while minimizing spare parts. The modular, snap-on design reduces maintenance costs and accelerates changeovers, delivering business value through shorter downtime and faster qualification of new equipment.
Product Information
Extended Description

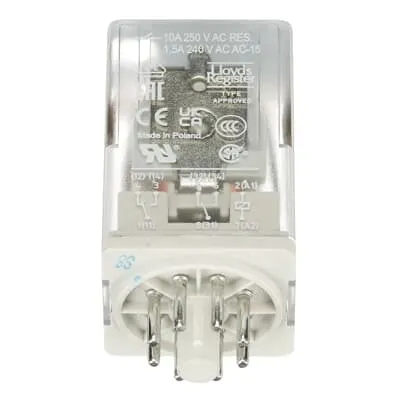

1SVR405621R2000 ABB: The CR-U120AC2 pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. CR-U relays may be plugged into CR-U sockets and this combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. CR-U relays have robust circular pin terminals, designed and manufactured to handle tough, repetitive-use applications and are more durable than standard relays.This relay operates with a 120 V AC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories.
EAN
4013614498398
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
35 mm
Product Net Height
54.4 mm
Product Net Depth / Length
35 mm
Product Net Weight
0.083 kg
Function
Pluggable universal interface relay CR-U
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
120 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Pin
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-U range
CQC Certificate
CQC Certificate, Interface Relays, CR-U, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-U, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
182 mm
Package Level 1 Depth / Length
77 mm
Package Level 1 Height
76 mm
Package Level 1 Gross Weight
0.87 kg
Package Level 1 EAN
4013614374067
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712787
E-Number (Norway)
4187462
Feature: Pluggable universal CR-U relay design that snaps into standard CR-U sockets and mounts on a DIN rail. Business Impact: Enables rapid field changes, reduces wiring complexity, and speeds commissioning. Application: Ideal for modular automation architectures, control panels, and signaling circuits. Feature: 120 V AC control voltage with 250 V AC, 10 A output on 2 SPDT contacts. Business Impact: Supports switching multiple circuits from a single input, simplifying logic and reducing wiring harness length. Application: Machine control, process panels, and signaling in conveyors and packaging lines. Feature: Integrated test button and LED indicator. Business Impact: Facilitates on-site testing and troubleshooting, cutting commissioning and maintenance time. Application: Commissioning new lines and servicing existing installations. Feature: Robust circular pin terminals and IP40 protection. Business Impact: Improves durability in repetitive plug-in usage and cabinet environments; easier maintenance checks. Application: Industrial cabinets, panels, and field installations requiring reliable cycling. Feature: Broad certifications and RoHS compliance. Business Impact: Ensures regulatory alignment across regions, streamlines procurement, and mitigates compliance risk. Application: Global supply chains and multinational projects needing standardized relays. Feature: Compact footprint and DIN-rail compatibility. Business Impact: Maximizes panel space, simplifies retrofit projects, and reduces enclosure depth. Application: Tight control cabinets and retrofit of legacy systems.
