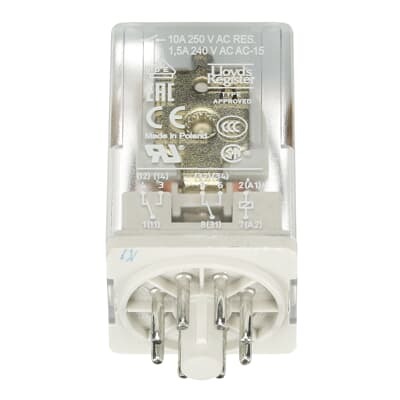

ABB 1SVR405621R4100 Pluggable Interface Relay - IP40
Part Number: 1SVR405621R4100
Quick Summary
ABB 1SVR405621R4100 is a pluggable interface relay for modular control in automation panels. Engineers often face wiring clutter and slow commissioning, which erodes efficiency. The CR-U series offers IP40 protection and CE/UKCA declarations, with UL/ CSA certifications for broader safety compliance. Its DIN rail snap-on mounting, integrated LED, and built-in test button simplify installation and commissioning. With a 12 V DC control coil and 2 c/o SPDT contacts rated up to 250 V/10 A, this solution scales from simple signaling to multi-circuit switching while preserving compact footprint and predictable behavior in harsh industrial environments.
Product Information
Extended Description
1SVR405621R4100 ABB: The CR-U012DC2L pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. CR-U relays may be plugged into CR-U sockets and this combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. CR-U relays have robust circular pin terminals, designed and manufactured to handle tough, repetitive-use applications and are more durable than standard relays.This relay operates with a 12 V DC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
EAN
4013614498442
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
35 mm
Product Net Height
54.4 mm
Product Net Depth / Length
35 mm
Product Net Weight
0.083 kg
Function
Pluggable universal interface relay CR-U
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
12 V DC
Rated Operational Voltage
250 V AC
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Pin
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-U range
CQC Certificate
CQC Certificate, Interface Relays, CR-U, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-U, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
182 mm
Package Level 1 Depth / Length
77 mm
Package Level 1 Height
76 mm
Package Level 1 Gross Weight
0.87 kg
Package Level 1 EAN
4013614374081
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712760
E-Number (Norway)
4187474
Feature: Pluggable CR-U relay design enables modularity and quick replacement; Benefit: Reduces downtime and spare parts inventory while simplifying panel revisions; Application: Control panels with frequent reconfiguration or expansion. Feature: 12 V DC coil; Benefit: Low power drive from common PLC outputs, enabling energy-efficient logic coupling; Application: Machine control circuits and signaling loops. Feature: 2 c/o SPDT contacts rated 250 V / 10 A; Benefit: Supports switching multiple circuits from a single input, improving wiring economy and reliability; Application: Interlocking and load switching in control logic. Feature: Built-in LED and test button; Benefit: Immediate visual status and easy commissioning without external instruments; Application: Rapid validation during start-up and maintenance windows. Feature: IP40 protection and DIN rail mounting; Benefit: Rugged performance in standard factory environments with space-efficient installation; Application: Timber, plastics, and general manufacturing automation. Feature: Circular pin terminals and durable construction; Benefit: Robust connections for repetitive use and vibration-prone environments; Application: High-cycle control panels and process automation. Feature: Broad certifications and standards (CE, UKCA, UL/ CSA, UL 508); Benefit: Streamlined compliance and risk management for global deployments; Application: Global machines and panels requiring regulatory alignment.
Get a Quick Quote for a ABB 1SVR405621R4100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405621R4100?
Enquire Now
FAQs
Install with compatible CR-U sockets, snap the relay onto a standard DIN rail, and confirm proper seating for the circular pin terminals. Check ambient temperature range (-40 to +70 C) and ensure adequate clearance for the LED indicator and test button. Use appropriate wire sizing for 10 A loads and keep wiring tidy to prevent interference.
The relay uses a 12 V DC coil and provides 2 c/o SPDT contacts with a 250 V AC switching capability at up to 10 A. It supports AC-12 ratings up to 230 V at 10 A and DC-12 ratings up to 24 V at 10 A, with DC-13 loads limited to 2 A at 24 V or 0.1 A at 250 V. Output is rated for 250 V / 10 A overall.
Yes. It carries CE and UKCA declarations of conformity, along with UL/CSA recognition (UL 508) and related certificates for the CR-U range. The device also meets CAN/CSA, IEC/EN 63000 and IEC/EN 61810-1 standards, supporting safe, compliant installation in global automation environments.
Its pluggable CR-U design enables rapid replacement and upgrades, reducing downtime. The DIN rail mounting, built-in LED, and test button streamline diagnostics, while the compact footprint and standardized sockets support scalable architectures. This is ideal for evolving control panels and systems where quick reconfiguration and predictable performance matter.
Plan for field-life replacement via plug-in modules and sockets, keeping spare CR-U relays and sockets available. The device operates from -40 to +70 C and up to 2000 m altitude without derating, with IP40 protection. Ensure compatibility with UL/CSA and CE/UKCA requirements, and schedule periodic checks of connections to prevent oxidation or loosening in vibration-heavy applications.
