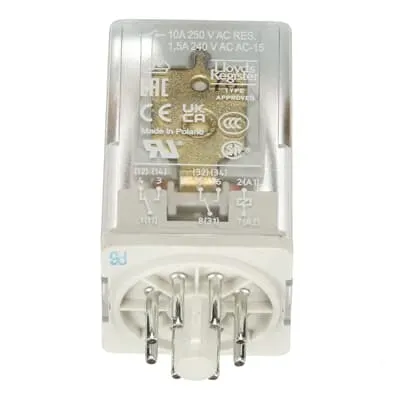

ABB 1SVR405621R7100 Pluggable Interface Relay - IP40
Part Number: 1SVR405621R7100
Quick Summary
ABB 1SVR405621R7100 pluggable interface relay is a two-circuit SPDT device that enables reliable switching in control panels. The plug-in design reduces wiring complexity and speeds commissioning in tight DIN-rail installations. This relay meets CE, UL/CSA, and RoHS standards, with an IP40 enclosure to handle typical industrial environments. Compatible with CR-U sockets, it supports scalable spares and streamlined maintenance, delivering measurable business value through faster deployments and easier field servicing.
Product Information
Extended Description
1SVR405621R7100 ABB: The CR-U110AC2L pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. CR-U relays may be plugged into CR-U sockets and this combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. CR-U relays have robust circular pin terminals, designed and manufactured to handle tough, repetitive-use applications and are more durable than standard relays.This relay operates with a 110 V AC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
28 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
EAN
4013614498503
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
35 mm
Product Net Height
54.4 mm
Product Net Depth / Length
35 mm
Product Net Weight
0.083 kg
Function
Pluggable universal interface relay CR-U
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
110 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Pin
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-U range
CQC Certificate
CQC Certificate, Interface Relays, CR-U, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-U, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
182 mm
Package Level 1 Depth / Length
77 mm
Package Level 1 Height
76 mm
Package Level 1 Gross Weight
0.87 kg
Package Level 1 EAN
4013614374135
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712780
E-Number (Norway)
4187481
Feature: Pluggable CR-U universal interface relay with two SPDT outputs. Business Impact: Consolidates multi-circuit control into a single module, reducing panel wiring, inventory, and potential wiring faults. Application: Ideal for centralized control cabinets where quick replacement and clear diagnostics are critical. Feature: 110 V AC rated control supply and 250 V AC / 10 A switching capability. Business Impact: Supports standard control loops while handling common load demands, enabling reliable interlocking and signaling across machines. Application: Machine control, signaling, and interlocks within automated lines. Feature: Integrated LED indicator and test button. Business Impact: Facilitates fast commissioning and on-the-spot diagnostics, shortening startup time and reducing the need for auxiliary test equipment. Application: Commissioning, troubleshooting, and routine maintenance in dense electrical panels. Feature: Durable circular pin terminals and DIN-rail snap-on mounting. Business Impact: Delivers secure, vibration-resistant connections with effortless installation, lowering rework and downtime. Application: DIN-rail mounted control modules in harsh environments. Feature: Robust protection and compliance profile (IP40, IEC/EN 61810-1, UL 508, CAN/CSA). Business Impact: Ensures safe operation, broad market approvals, and regulatory alignment, reducing compliance risk. Application: International deployments in safety-critical systems and multi-market facilities. Feature: Broad accessory ecosystem and CR-U socket compatibility. Business Impact: Simplifies spare-parts strategy and accelerates field servicing while enabling scalable control architectures. Application: Expands retrofit capability in existing CR-U based installations.
Get a Quick Quote for a ABB 1SVR405621R7100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405621R7100?
Enquire Now
FAQs
The 1SVR405621R7100 is a pluggable CR-U relay designed to snap into standard CR-U sockets and mount on a 35 mm DIN rail. Use with ABB CR-U sockets, logic sockets, and mounting accessories; the circular pin terminals provide durable, vibration-resistant connections ideal for harsh industrial environments.
This relay operates from a 110 V AC control supply and provides two SPDT outputs rated up to 250 V AC at 10 A. It supports AC-12 and AC-15 ratings at 230 V and 24 V DC ratings of 10 A for DC-12, with DC-13 ratings of 2 A at 24 V or 0.1 A at 250 V. Suitable for signaling and interlocks in automation.
Yes. The CR-U family carries multiple certifications including CAN/CSA C22.2 No.14, UL 508, and CE, along with IEC/EN 61810-1 and 63000 standards. This broad certification footprint supports international deployment in control panels and safety-critical equipment, while RoHS compliance aligns with restricted substance requirements.
The relay family holds CE, UKCA, UL/CSA, UR, VDE, CCC, CQC, and EAC certifications, and is RoHS compliant under EU Directive 2011/65/EU. This comprehensive certification set helps with global compliance, traceability, and supplier audits, while the RoHS status assures restricted substances are within allowed limits.
The pluggable design enables fast field replacement without rewiring, reducing maintenance downtime. An integrated LED indicator and test button support quick commissioning and fault isolation, lowering MTTR. Compatibility with spare CR-U sockets streamlines inventory and procurement, delivering lower total cost of ownership for large DIN-rail control cabinets.
