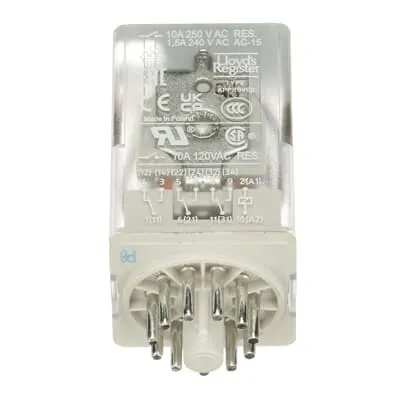

ABB 1SVR405622R1000 Pluggable Interface Relay - 3C/O
Part Number: 1SVR405622R1000
Quick Summary
ABB 1SVR405622R1000 is a pluggable interface relay used to safely switch multiple circuits in control panels. Engineers often face downtime during replacements or compatibility issues with sockets, making maintenance slower and more costly. This device carries CE and UL/CSA certifications, IP40 protection, and RoHS compliance to support reliable, regulation-ready installations. Designed for DIN rail mounting with CR-U sockets, it enables plug‑and‑play installation, reduces spares and downtime, and delivers predictable performance in high-availability automation environments. For engineers seeking modular, scalable control solutions, this relay pairs well with standard automation controllers and compact control cabinets to drive efficiency and consistency across production lines.
Product Information
Extended Description
1SVR405622R1000 ABB: The CR-U024DC3 pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. CR-U relays may be plugged into CR-U sockets and this combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. CR-U relays have robust circular pin terminals, designed and manufactured to handle tough, repetitive-use applications and are more durable than standard relays.This relay operates with a 24 V DC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
35 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
EAN
4013614498572
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
35 mm
Product Net Height
54.4 mm
Product Net Depth / Length
35 mm
Product Net Weight
0.083 kg
Function
Pluggable universal interface relay CR-U
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
24 V DC
Rated Operational Voltage
250 V AC
Output
3 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Pin
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-U range
CQC Certificate
CQC Certificate, Interface Relays, CR-U, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-U, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
182 mm
Package Level 1 Depth / Length
77 mm
Package Level 1 Height
76 mm
Package Level 1 Gross Weight
0.87 kg
Package Level 1 EAN
4013614374197
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712769
E-Number (Norway)
4187465
E-Number (Sweden)
4005422
Feature → Business Impact → Application: 24 V DC coil delivers direct compatibility with common PLCs and control logic, reducing interfacing complexity and wiring errors in machine control panels. This translates to faster wiring, easier commissioning, and lower lifecycle maintenance costs in production lines. Application: control cabinets and panel assemblies requiring reliable 24 V control signals. Feature → Business Impact → Application: 3 c/o SPDT contacts (three changeover contacts) enable switching multiple circuits from a single input, simplifying control logic and enabling compact interlock schemes in conveyors and automated feeders. Application: industrial automation and packaging lines. Feature → Business Impact → Application: 250 V AC / 10 A contact rating supports switching of common loads with robust margins, reducing the need for parallel relays and improving energy management in motor control and signal distribution. Application: motor starters and safety interlocks. Feature → Business Impact → Application: DIN rail snap-on mounting plus compatibility with CR-U sockets enables rapid field upgrades and modular maintenance, cutting installation time by hours in large control panels. Application: retrofit projects and new line builds. Feature → Business Impact → Application: integrated test button and LED indicator provide immediate feedback during commissioning and in-service diagnostics, reducing trial-and-error testing and enabling quick fault localization. Application: on-site maintenance and remote troubleshooting. Feature → Business Impact → Application: robust circular pin terminals offer high-reliability connections in vibration-prone environments, extending service life and minimizing contact resistance concerns. Application: robotic cells and packaging machinery. Feature → Business Impact → Application: RoHS, CE, UL/CSA certifications ensure regulatory compliance and supplier accountability, lowering risk in audits and cross-border deployments. Application: aerospace, automotive, and general industrial environments. Feature → Business Impact → Application: compact dimensions (35 mm x 54.4 mm x 35 mm) maximize real estate in crowded panels, enabling denser I/O layouts and cost-efficient enclosures. Application: compact control panels and distributed I/O blocks.
Get a Quick Quote for a ABB 1SVR405622R1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405622R1000?
Enquire Now
FAQs
Yes. The CR-U family is designed for plug‑in compatibility with CR-U sockets and snap‑on DIN rail mounting. This enables rapid field replacements and modular upgrades in existing panel assemblies without rewiring, reducing commissioning time and spare-part complexity.
The relay features a 24 V DC rated control coil, 3 c/o SPDT contacts, and a 250 V AC / 10 A output. It supports DC‑12 and DC‑13 operation with rated currents up to 10 A at 24 V, and insulation voltage of 250 V. These specs make it suitable for typical control circuits and load switching in automation.
Absolutely. It carries IP40 protection, operates from -40 to +70 °C, and adheres to RoHS with CE and UL/CSA certifications. These attributes ensure reliable performance in factories and comply with major international standards for electrical components.
3C/O SPDT contacts enable switching multiple circuits from a single input, making them ideal for interlocking, safety circuits, and dual‑channel signaling in conveyors or robotic cells. This reduces part counts and simplifies ladder logic, improving maintenance efficiency and system reliability.
The integrated test button allows manual actuation and quick functional checks, while the LED provides immediate status indication. This reduces commissioning time, speeds fault diagnosis, and lowers maintenance costs by shortening downtime and extending mean time between failures.
