ABB 1SVR405622R1100 Pluggable Interface Relay - CE/UL/UKCA
Part Number: 1SVR405622R1100
Quick Summary
ABB 1SVR405622R1100 Pluggable Interface Relay is a compact, plug-in solution for isolating and switching multiple circuits in control panels. This design reduces wiring complexity and speeds up replacement that often slows down commissioning. The device features a 24 V DC coil, 3 c/o SPDT contacts, and an integrated LED indicator to confirm energization, addressing common field troubleshooting pain points. With CE, UL/CSA, and UKCA certifications, it meets global safety and performance standards, supporting reliable operation across North American and European applications. Its compatibility with standard CR-U sockets and DIN rail mounting delivers tangible business value through modularity, scalability, and reduced maintenance costs in industrial automation contexts.
Product Information
Extended Description

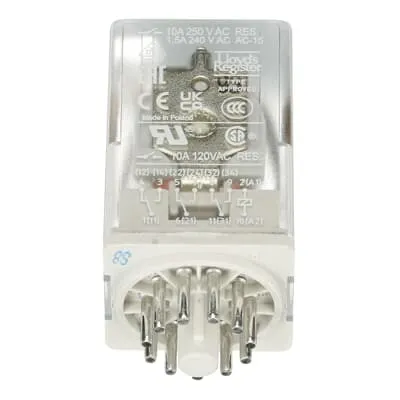

1SVR405622R1100 ABB: The CR-U024DC3L pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. CR-U relays may be plugged into CR-U sockets and this combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. CR-U relays have robust circular pin terminals, designed and manufactured to handle tough, repetitive-use applications and are more durable than standard relays.This relay operates with a 24 V DC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Turkiye (TR)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Turkiye (TR)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Country of Origin
Turkiye (TR)
Quote Only
No
Lead Time
28 day
Product Sales Status
Active
Made To Order
No
Stocked At Warehouses
TRESA001EXPU
Warranty Return
Product under warranty must be returned
EAN
4013614498589
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
35 mm
Product Net Height
54.4 mm
Product Net Depth / Length
35 mm
Product Net Weight
0.083 kg
Function
Pluggable universal interface relay CR-U
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
24 V DC
Rated Operational Voltage
250 V AC
Output
3 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Pin
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-U range
CQC Certificate
CQC Certificate, Interface Relays, CR-U, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-U, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
182 mm
Package Level 1 Depth / Length
77 mm
Package Level 1 Height
76 mm
Package Level 1 Gross Weight
0.87 kg
Package Level 1 EAN
4013614374289
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712770
E-Number (Norway)
4187485
E-Number (Sweden)
4005423
Feature → Business Impact → Application: The CR-U024DC3L uses a 24 V DC control coil with 3 c/o SPDT contacts, enabling compact, modular control of multiple circuits from a single input signal. This reduces panel space and simplifies wiring, delivering faster changeovers during maintenance and expansion in machine controls. Application: control panels, automated lines, and PLC interfaces benefit from quicker replacements and easier fault isolation. Feature → Business Impact → Application: Integrated test button and LED indicator provide immediate visual feedback and manual energization testing, decreasing commissioning time and limiting commissioning errors. Application: startup testing and field debugging for new lines or retrofits. Feature → Business Impact → Application: DIN rail snap-on mounting and robust circular pin terminals ensure secure, vibration-resistant connections with fast installation, lowering labor costs during installation and service. Application: rugged manufacturing environments and compact switchgear assemblies. Feature → Business Impact → Application: 250 V AC / 10 A output rating supports switching of multiple circuits from a single input, improving control efficiency and reducing relay creep in conveyors, pump systems, and process lines. Application: multi-branch control in industrial equipment. Feature → Business Impact → Application: operation across -40 to +70 °C and up to 2000 m altitude with IP40 protection delivers reliable performance in harsh factory floors, minimizing downtime due to environmental stress. Application: outdoor enclosures and temperature-variant facilities. Feature → Business Impact → Application: compatibility with standard sockets, logic sockets, and markers enables scalable, plug-and-play customization to evolving control schemes. Application: modular automation architectures and retrofit projects. Feature → Business Impact → Application: compliance with multiple certifications (CE, UL/CSA, UKCA, UL/UR, VDE) ensures regulatory performance across global markets, reducing certification lead times and enabling faster time-to-value. Application: international product deployments and cross-border manufacturing operations.
