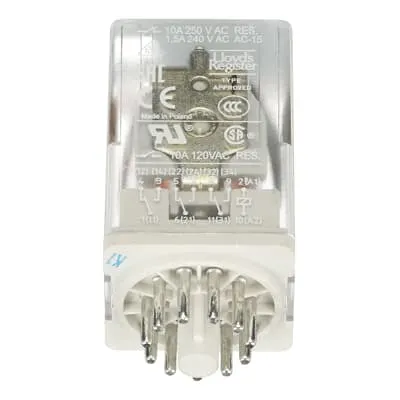

ABB 1SVR405622R2000 Pluggable Interface Relay - IP40
Part Number: 1SVR405622R2000
Quick Summary
CR-U pluggable interface relay from ABB provides a universal DIN-rail control interface for industrial automation. Engineers often face compatibility gaps and lengthy testing when swapping relays, but the plug-in CR-U design and visible diagnostics reduce downtime. It carries CE, UL/CSA, and UKCA listings with IP40 protection, RoHS compliance, and robust construction for harsh environments. This configuration pairs well with standard CR-U sockets and DIN rail mounting, delivering faster commissioning and lower total cost of ownership for control panels and machine automation.
Product Information
Extended Description
1SVR405622R2000 ABB: The CR-U120AC3 pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. CR-U relays may be plugged into CR-U sockets and this combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. CR-U relays have robust circular pin terminals, designed and manufactured to handle tough, repetitive-use applications and are more durable than standard relays.This relay operates with a 120 V AC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories.
EAN
4013614498596
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
35 mm
Product Net Height
54.4 mm
Product Net Depth / Length
35 mm
Product Net Weight
0.083 kg
Function
Pluggable universal interface relay CR-U
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
120 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
3 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Pin
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-U range
CQC Certificate
CQC Certificate, Interface Relays, CR-U, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-U, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
182 mm
Package Level 1 Depth / Length
77 mm
Package Level 1 Height
76 mm
Package Level 1 Gross Weight
0.87 kg
Package Level 1 EAN
4013614374241
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712789
E-Number (Norway)
4187472
The CR-U pluggable interface relay combines a compact, plug-in design with universal compatibility, enabling rapid replacement and reduced downtime in field installations. This translates into measurable efficiency gains for panel builders and maintenance teams, particularly in high-mix manufacturing environments where quick hot-swaps are critical. The 120 V AC control supply and 250 V AC / 10 A SPDT output support multiple circuits from a single input, simplifying panel wiring and saving space in crowded control cabinets. Integrated diagnostics, including a test button and LED indicator, streamline commissioning and troubleshooting, reducing commissioning time by providing immediate coil energization status. The durable circular pin terminals are designed for repetitive use, improving long-term reliability in vibration-heavy environments common in packaging and material handling applications. RoHS-compliant materials and UL/CSA listed performance ensure compliance and simplify supplier audits, while DIN rail mounting and compatibility with CR-U sockets minimize installation risk and changeout complexity. In practice, this translates to lower maintenance costs, faster upgrades, and compliant, repeatable performance across industrial automation projects.
Get a Quick Quote for a ABB 1SVR405622R2000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405622R2000?
Enquire Now
FAQs
Yes. The 1SVR405622R2000 is a CR-U pluggable interface relay designed to plug into CR-U sockets and snap onto a DIN rail, enabling quick swaps and straightforward integration with existing CR-U infrastructure.
The relay operates with a 120 V AC rated control supply and provides 3 c/o SPDT contacts with a rated output of 250 V AC at up to 10 A. It supports rated operating currents suitable for typical control circuits in industrial panels.
Yes. The CR-U range carries UL/CSA listings and is designed for UL 508-compliant applications. It also supports CE and UKCA certifications, enhancing suitability for regulated control panels in diverse regions.
CR-U relays carry CE, UKCA, UL/CSA, CCC, CQC, EAC, LR, RMRS, UR, and VDE certifications among others, reflecting broad international conformity and simplifying penetration into global markets.
Pluggable relays enable rapid field replacement without rewiring, reducing downtime. With integrated test functionality and LED indicators, commissioning is faster and more reliable, lowering maintenance costs and extending equipment lifecycle while improving overall return on investment.
