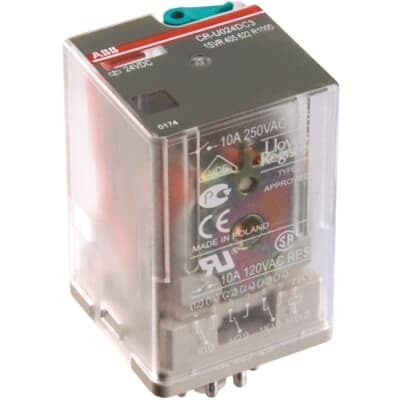

ABB 1SVR405622R3000 Pluggable Interface Relay - IP40
Part Number: 1SVR405622R3000
Quick Summary
ABB 1SVR405622R3000 pluggable interface relay is a compact, DIN rail–mounted solution that switches multiple circuits from a single control input. For engineers, space constraints and commissioning time are common pain points—this module is designed to simplify plug-and-play maintenance. Key certifications such as CE/UKCA, UL/CSA, and IP40 ensure safe, compliant operation across industrial environments. Used with CR-U sockets, its robust contacts and clear indication improve reliability, while 230 V AC control aligns with standard automation gear. This makes it an economical, scalable choice for control panels, machine safety interlocks, and process-line logic where quick replacement and diagnostics matter. Its compact footprint also reduces field cabinet depth and lowers wiring complexity.
Product Information
Extended Description
1SVR405622R3000 ABB: The CR-U230AC3 pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. CR-U relays may be plugged into CR-U sockets and this combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. CR-U relays have robust circular pin terminals, designed and manufactured to handle tough, repetitive-use applications and are more durable than standard relays.This relay operates with a 230 V AC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
EAN
4013614498619
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
35 mm
Product Net Height
54.4 mm
Product Net Depth / Length
35 mm
Product Net Weight
0.083 kg
Function
Pluggable universal interface relay CR-U
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
230 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
3 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Pin
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Contact Rating UL/CSA
B300
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-U range
CQC Certificate
CQC Certificate, Interface Relays, CR-U, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-U, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
182 mm
Package Level 1 Depth / Length
77 mm
Package Level 1 Height
76 mm
Package Level 1 Gross Weight
0.87 kg
Package Level 1 EAN
4013614374258
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712797
E-Number (Norway)
4187473
E-Number (Sweden)
4005425
Feature: Pluggable design with CR-U sockets and DIN rail mounting. Business Impact: Enables fast replacement, easier servicing, and reduced downtime in control panels and machine rooms. Application: Ideal for modular automation where quick swaps are routine. Feature: 230 V AC control supply voltage and 3 c/o SPDT outputs rated at 250 V / 10 A. Business Impact: Supports multi-circuit switching from a single input, improving wiring efficiency and load management. Application: Suitable for centralized control logic in manufacturing lines and process control cabinets. Feature: Integrated test button and LED indicator. Business Impact: Speeds commissioning, diagnostics, and in-field testing without external tooling. Application: Great for commissioning new machines or line upgrades in automated environments. Feature: Robust circular pin terminals designed for repetitive use. Business Impact: Reduces contact wear and maintenance intervals, lowering total cost of ownership. Application: Heavy-use automation and panel assemblies with frequent cycling. Feature: IP40 protection and wide operating temperature (-40 to +55 °C). Business Impact: Reliable performance in harsh factory floors and enclosures, with minimal derating up to 2000 m altitude. Application: Industrial environments requiring rugged relays in limited space. Feature: Certifications and compliance (UL/CSA, CE/UKCA, RoHS). Business Impact: Ensures regulatory acceptance across global markets, simplifying procurement and audit trails. Application: Compliance-driven projects in healthcare, automotive, and process industries. Feature: Compatibility and stocking benefits (DIN rail compatibility, CR-U socket ecosystem, 0-day lead time, German origin). Business Impact: Accelerates project timelines and reduces sourcing risk through familiar, widely supported components. Application: Large-scale panel builds and retrofits across diverse facilities.
Get a Quick Quote for a ABB 1SVR405622R3000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405622R3000?
Enquire Now
FAQs
Install by snapping the CR-U003/CR-U range pluggable relay into its CR-U socket, then mount the socket assembly onto a standard 35 mm DIN rail. Ensure correct orientation for SPDT contacts and secure the terminal pins. The relay is designed for easy replacement without disassembly, reducing downtime during maintenance or upgrades.
The CR-U230AC3 is driven by 230 V AC control, providing 3 c/o SPDT outputs with a rating of up to 250 V and 10 A. Operational current ratings include AC-12 at 230 V, 10 A, and AC-15 limits suitable for inductive loads. This makes it suitable for multi-circuit control in automation cabinets.
Ideal for factory automation, machine controls, process lines, and safety interlocks where quick replacements and modular design matter. Its DIN rail mounting, robust terminals, and clear energization indicator support high-reliability control panels in manufacturing, packaging, and material handling applications.
The relay carries CE/UKCA, UL/CSA compatibility, and RoHS compliance. It adheres to standards including IEC/EN 63000, IEC/EN 61810-1, UL 508, and can be listed under relevant regional approvals, supporting regulatory documentation and audits.
With an integrated test button and LED, commissioning and fault isolation are faster, cutting startup time. Its plug-in design allows rapid replacements without re-wiring, lowering maintenance labor costs. Compatibility with CR-U sockets and stock availability reduces downtime and ensures quicker project delivery.
