ABB 1SVR405622R3100 Pluggable interface relay - UL 508
Part Number: 1SVR405622R3100
Quick Summary
ABB 1SVR405622R3100 Pluggable interface relay is a universal DIN-rail relay that switches multiple circuits from a single control signal. Engineers often face wiring complexity, spares management, and lengthy commissioning, and this CR-U style relays minimize downtime and simplify replacements. It carries UL 508, UL/CSA, and CE certifications along with IP40 protection, helping you meet regulatory requirements in harsh industrial environments. By combining plug-and-play sockets with built-in indicators, it delivers tangible business value through faster setup, easier diagnostics, and scalable expansion for evolving automation architectures.
Product Information
Extended Description

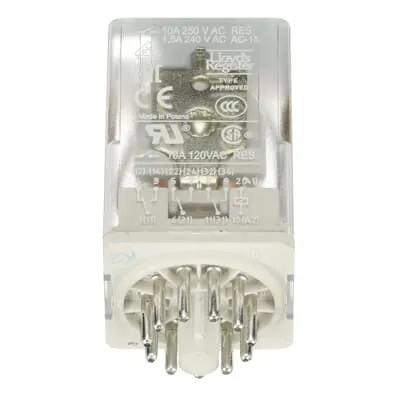

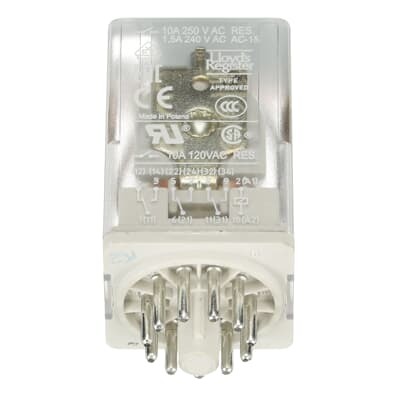

1SVR405622R3100 ABB: The CR-U230AC3L pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. CR-U relays may be plugged into CR-U sockets and this combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. CR-U relays have robust circular pin terminals, designed and manufactured to handle tough, repetitive-use applications and are more durable than standard relays.This relay operates with a 230 V AC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
35 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
EAN
4013614498626
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
35 mm
Product Net Height
54.4 mm
Product Net Depth / Length
35 mm
Product Net Weight
0.083 kg
Function
Pluggable universal interface relay CR-U
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
230 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
3 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Pin
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-U range
CQC Certificate
CQC Certificate, Interface Relays, CR-U, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-U, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
182 mm
Package Level 1 Depth / Length
77 mm
Package Level 1 Height
76 mm
Package Level 1 Gross Weight
0.87 kg
Package Level 1 EAN
4013614374340
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712798
E-Number (Norway)
4187493
E-Number (Sweden)
4005426
Feature: Pluggable universal CR-U relay with 3 c/o SPDT contacts. Business Impact: Enables multi-circuit switching from one control signal, reducing wiring complexity and panel footprint. Application: Ideal for distributed control in automation panels and machine control stations. Long-tail keywords: pluggable interface relay, CR-U range, DIN rail mounting. Feature: 230 V AC rated control supply with a 250 V / 10 A output. Business Impact: Standardized control voltage and robust switching capacity, lowering component variety and increasing reliability. Application: General purpose control in industrial networks and process lines. Long-tail keywords: 230 VAC control voltage, SPDT contacts, AC-12/AC-15 capabilities. Feature: Built-in LED and test button for manual actuation. Business Impact: Improves commissioning speed and on-site diagnostics, reducing start-up time and unnecessary testing cycles. Application: Panel commissioning, maintenance checks, and troubleshooting. Long-tail keywords: LED indicator, test button, manual actuation. Feature: EN/UL safety and environmental ratings including IP40 and wide operational temp range. Business Impact: Compliance with safety standards and resilient operation in factory floors, hot/cold environments, and altitudes. Application: Industrial automation environments with variable conditions. Long-tail keywords: IP40, UL/CSA compliance, operational temp -40 to +55 C. Feature: High-current, AC/DC capability across multiple ratings (AC-12, AC-15, DC-12, DC-13). Business Impact: Supports diverse control loads from solenoids to small motors, enabling versatile panel designs. Application: Control of actuators and signaling devices in production lines. Long-tail keywords: 250 V / 10 A output, DC-12 10 A, AC-12 10 A, DC-13 2 A @ 250 V.
