ABB 1SVR405622R4100 Pluggable interface relay - UL 508
Part Number: 1SVR405622R4100
Quick Summary
ABB 1SVR405622R4100 Pluggable interface relay is a versatile control device that enables compact SPDT switching in industrial automation panels. Engineers often wrestle with wiring complexity and slow field replacements in control cabinets; this pluggable design minimizes downtime and simplifies maintenance. Certified to CE and UKCA with UL 508 protection and an IP40 rating, it delivers reliable performance in challenging environments. Featuring a 12 V DC coil, built-in LED, and a manual test button, the solution supports fast diagnostics and clear status visibility. Its DIN rail compatibility and CR-U socket integration enable scalable automation without sacrificing reliability.
Product Information
Extended Description

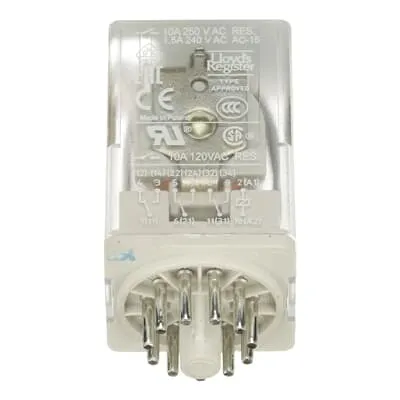

1SVR405622R4100 ABB: The CR-U012DC3L pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. CR-U relays may be plugged into CR-U sockets and this combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. CR-U relays have robust circular pin terminals, designed and manufactured to handle tough, repetitive-use applications and are more durable than standard relays.This relay operates with a 12 V DC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories.
EAN
4013614498640
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
35 mm
Product Net Height
54.4 mm
Product Net Depth / Length
35 mm
Product Net Weight
0.083 kg
Function
Pluggable universal interface relay CR-U
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
12 V DC
Rated Operational Voltage
250 V AC
Output
3 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Pin
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-U range
CQC Certificate
CQC Certificate, Interface Relays, CR-U, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-U, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
182 mm
Package Level 1 Depth / Length
77 mm
Package Level 1 Height
76 mm
Package Level 1 Gross Weight
0.87 kg
Package Level 1 EAN
4013614374265
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712762
E-Number (Norway)
4187484
Feature: 12 V DC coil with integrated LED and test button → Business Impact: Quick energization indication and easy commissioning reduce setup time and commissioning risk; Application: Control circuits in machine panels where fast validation is critical. Feature: Pluggable CR-U interface design → Business Impact: Fast field replacement minimizes downtime and lowers maintenance costs; Application: Modular automation lines with high availability requirements. Feature: 3 c/o SPDT outputs rated to 250 V AC / 10 A → Business Impact: Single input can switch multiple circuits, improving control flexibility and reducing hardware count; Application: Industrial control relays for signaling and interlocking. Feature: IP40, -40 to +70 °C operating range → Business Impact: Robust performance in harsh environments with minimal derating; Application: Outdoor or cabinet-mounted panels. Feature: DIN rail mounting with socket compatibility → Business Impact: Streamlined installation, scalable expansion, and reduced wiring complexity; Application: Standard automation cabinets across manufacturing. Feature: Certifications including CE, UKCA, UL 508 → Business Impact: Easier compliance and safer certification path; Application: Global or multi-region deployments with regulated equipment.
