ABB 1SVR405622R6100 Pluggable interface relay - IP40
Part Number: 1SVR405622R6100
Quick Summary
ABB 1SVR405622R6100 is a pluggable interface relay used for compact automation control in control cabinets. Engineers often struggle with wiring density and the need for quick, reliable testing during commissioning. This device carries CE and UKCA declarations with UL/CSA approvals and IP40 protection, ensuring safe operation across industrial environments. The combination of a 48 V DC rated control supply and a 3 c/o SPDT output enables multiplexed switching from a single coil, reducing wiring complexity and potential fault points. In short, this pluggable relay supports faster panel builds, easier maintenance, and more dependable control in modern automation projects.
Product Information
Extended Description

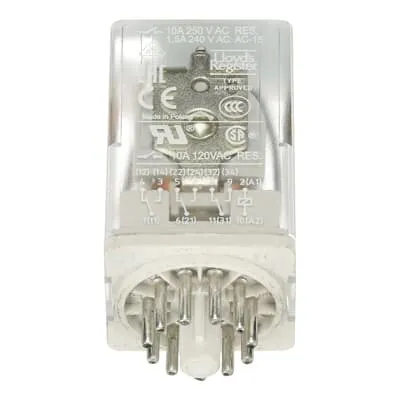

1SVR405622R6100 ABB: The CR-U048DC3L pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. CR-U relays may be plugged into CR-U sockets and this combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. CR-U relays have robust circular pin terminals, designed and manufactured to handle tough, repetitive-use applications and are more durable than standard relays.This relay operates with a 48 V DC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
160 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
EAN
4013614498695
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
35 mm
Product Net Height
54.4 mm
Product Net Depth / Length
35 mm
Product Net Weight
0.083 kg
Function
Pluggable universal interface relay CR-U
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
48 V DC
Rated Operational Voltage
250 V AC
Output
3 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Pin
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-U range
CQC Certificate
CQC Certificate, Interface Relays, CR-U, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-U, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
182 mm
Package Level 1 Depth / Length
77 mm
Package Level 1 Height
76 mm
Package Level 1 Gross Weight
0.87 kg
Package Level 1 EAN
4013614374302
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712778
E-Number (Norway)
4187486
Feature: Pluggable CR-U relay with built-in LED and test button ensures easy visual feedback and manual actuation during commissioning. Business Impact: Reduces field testing time and troubleshooting complexity, lowering installation costs and downtime. Application: Ideal for panel builders integrating relays into DIN rails where rapid testing accelerates project timelines. Feature: 48 V DC rated control supply with 3 c/o SPDT outputs delivers versatile switching capability. Business Impact: Enables multiplexed control of multiple loads from a single input, simplifying control logic and wiring schematics. Application: Suitable for interlocking and signaling circuits in automation cabinets. Feature: 250 V AC / 10 A contact rating provides robust power switching for common industrial loads. Business Impact: Supports reliable operation across a range of actuators and indicators, improving overall line uptime. Application: Drives motor starters, indicators, or signaling devices in a single relay package. Feature: IP40 enclosure with -40 to +70 °C operating range and durable circular pin terminals. Business Impact: Ensures dependable performance in harsh factory environments and reduces replacement frequency. Application: Suitable for high-vibration environments and elevated ambient temperatures in industrial plants. Feature: DIN rail mounting with compatible CR-U sockets and accessories. Business Impact: Speeds installation, simplifies upgrades, and reduces panel space usage. Application: Perfect for standard automation panels and modular control architectures. Feature: RoHS compliance and broad certifications (CE/UKCA/UL/CSA). Business Impact: Supports regulatory compliance and mitigates sourcing risks for regulated industries. Application: Approved for medical device-adjacent or safety-critical control panels where standardization matters.
