ABB 1SVR405622R7000 Pluggable Interface Relay - IP40
Part Number: 1SVR405622R7000
Quick Summary
ABB 1SVR405622R7000 pluggable interface relay provides reliable circuit switching for panel-mounted control systems. A common pain point in automation is commissioning delays caused by unclear relay status and difficult field testing. This unit addresses that with an integrated test button and a visible coil LED for quick verification. It carries CE and UL 508 certifications and RoHS compliance, plus CAN/CSA and other declarations, streamlining regulatory alignment. For designers and maintenance teams, its DIN-rail compatibility and durable CR-U socket interface simplify installation, spare-part planning, and long-term lifecycle management. In practice, these features translate to faster deployment, reduced downtime, and safer, verifiable control circuits, aligning with modern factory automation goals.
Product Information
Extended Description

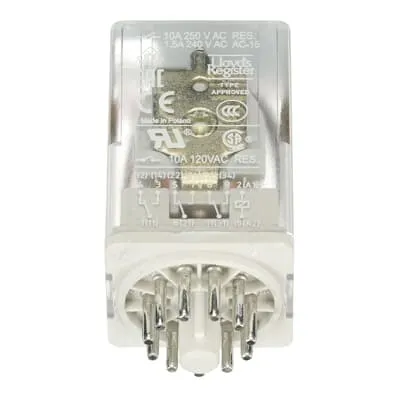

1SVR405622R7000 ABB: The CR-U110AC3 pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. CR-U relays may be plugged into CR-U sockets and this combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. CR-U relays have robust circular pin terminals, designed and manufactured to handle tough, repetitive-use applications and are more durable than standard relays.This relay operates with a 110 V AC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories.
EAN
4013614498701
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
35 mm
Product Net Height
54.4 mm
Product Net Depth / Length
35 mm
Product Net Weight
0.083 kg
Function
Pluggable universal interface relay CR-U
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
110 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
3 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Pin
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +55 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-U range
CQC Certificate
CQC Certificate, Interface Relays, CR-U, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-U, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
182 mm
Package Level 1 Depth / Length
77 mm
Package Level 1 Height
76 mm
Package Level 1 Gross Weight
0.87 kg
Package Level 1 EAN
4013614374227
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712781
E-Number (Norway)
4187471
Feature: Pluggable CR-U interface relay with 110 V AC control and 3 c/o SPDT outputs. Business Impact: Enables quick replacement and standardized socket-based configuration, reducing spare parts complexity. Application: Ideal for DIN rail mounted control panels in machine control and process automation. Feature: Integrated test button and coil LED for manual actuation and energization indication. Business Impact: Accelerates commissioning, simplifies troubleshooting, and minimizes on-site testing time. Application: Field hardware verification during startup and routine maintenance. Feature: Robust circular pin terminals and CR-U socket compatibility. Business Impact: Improves endurance under repetitive cycling and simplifies maintenance in harsh industrial environments. Application: Ready for high-cycle switching in automation cabinets. Feature: Wide electrical ratings and clear load guidance—110 V AC control, 250 V AC output up to 10 A, 50/60 Hz. Business Impact: Supports diverse control circuits with reliable performance, reducing design compromises. Application: Signals, interlocks, and panel automation across 230 V systems. Feature: IP40 enclosure with DIN-rail mounting and wide operating temperature (-40 to +55 °C). Business Impact: Enhances protection and installation flexibility in factory floors, with minimal derating at altitude. Application: Indoor control panels subject to temperature variation and humidity exposure. Feature: Certifications and compliance footprint—CE, UL 508, CSA, RoHS, and related declarations. Business Impact: Lowers regulatory risk and simplifies procurement across global sites. Application: Global manufacturing environments requiring standardized compliance.
