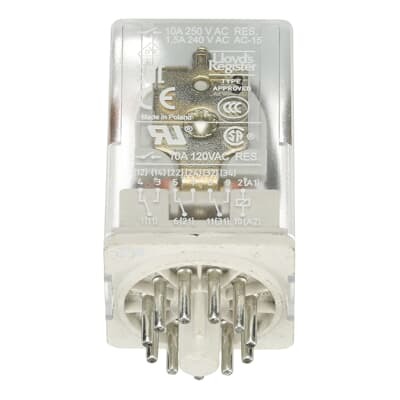

ABB CR-U110DC3 Pluggable Interface Relay - 3c/o SPDT
Part Number: 1SVR405622R8000
Quick Summary
The ABB CR-U110DC3 pluggable interface relay is a universal SPDT switch module for DIN rail control. Users often face bulky, non-pluggable relays and inconsistent control voltages across multi-socket configurations. CE, UL/CSA, and UKCA certifications help ensure regulatory compliance in key markets while IP40 protection provides reliable operation in typical factory environments. The CR-U110DC3 integrates seamlessly with ABB CR-U sockets and accessories, delivering fast deployment, simplified maintenance, and scalable control in automated systems. With a 110 V DC control supply and three changeover contacts rated up to 250 V / 10 A, it supports reliable multiplexing of signals and loads. A built‑in test button and LED offer quick diagnostics during commissioning, reducing downtime and accelerating route to production.
Product Information
Extended Description
1SVR405622R8000 ABB: The CR-U110DC3 pluggable interface relay is a univeral relay and is also commonly referred to as an ice cube relay. CR-U relays may be plugged into CR-U sockets and this combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. CR-U relays have robust circular pin terminals, designed and manufactured to handle tough, repetitive-use applications and are more durable than standard relays.This relay operates with a 110 V DC rated control supply voltage and has a 3 c/o (SPDT) output with contacts rated at 250 V / 10 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories.
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
Germany (DE)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
35 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
Germany (DE)
Made To Order
No
Product Sales Status
Active
Quote Only
No
EAN
4013614498725
Minimum Order Quantity
10 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Catalog 2024 Electronic Relays and Controls - Chapter Interface relays and optocouplers
Instructions and Manuals
Instructions - CR-M, CR-P, CR-U range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
35 mm
Product Net Height
54.4 mm
Product Net Depth / Length
35 mm
Product Net Weight
0.083 kg
Function
Pluggable universal interface relay CR-U
Sub-Function
Relay w/o built in LED
Rated Control Supply Voltage (Us)
110 V DC
Rated Operational Voltage
250 V AC
Output
3 c/o (SPDT) contacts
Output Signal
250 V / 10 A
Terminal Type
Pin
Rated Operational Current AC-12 (Ie)
(230 V) 10 A
Rated Operational Current AC-15 (Ie)
(120 V) 3 A | (230 V) 1.5 A
Rated Operational Current DC-12 (Ie)
(24 V) 10 A
Rated Operational Current DC-13 (Ie)
(24 V) 2 A | (250 V) 0.1 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
300 V AC
Pilot Duty UL/CSA
B300
Flammability According to UL94
HB
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
RoHS Status
Following EU Directive 2011/65/EU
CCC Certificate
CCC Certificate - Pluggable interface relays CR-U range
CQC Certificate
CQC Certificate, Interface Relays, CR-U, Made in Poland
CSA Certificate
CSA Certificate - Pluggable interface relays CR-P and CR-U
Declaration of Conformity - CCC
CCC Declaration of Conformity, Interface Relays, CR-U, Made in Poland
Declaration of Conformity - CE
EU Declaration of Conformity - CR-M, CR-U Pluggable interface relay
Declaration of Conformity - UKCA
UK Declaration of Conformity - CR-M, CR-U Pluggable interface-relays and accessories
EAC Certificate
EAC_RU_C-DE.ME77.B.00446-19
LR Certificate
LR Certificate - Pluggable interface relays CR-M and CR-U range
RMRS Certificate
RMRS Certificate - Pluggable interface relays CR range, except 60 V and 125 V versions
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
VDE Certificate
VDE Certificate - Pluggable interface relays CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
182 mm
Package Level 1 Depth / Length
77 mm
Package Level 1 Height
76 mm
Package Level 1 Gross Weight
0.87 kg
Package Level 1 EAN
4013614374234
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
E-Number (Finland)
2712785
E-Number (Norway)
4187467
Feature: 110 V DC control input paired with 3 c/o SPDT outputs. Business Impact: Enables centralized control of multiple circuits from a single input, reducing wiring complexity and panel size. Application: Ideal for distributed automation and machine control where single-signal actuation is needed across several loads. Long-tail keywords: 110 V DC relay, SPDT industrial relay, DIN rail control module. Feature: Pluggable design with CR-U socket and DIN rail mounting. Business Impact: Easier maintenance, rapid replacement, and minimized downtime during field service. Application: Modular control panels and retrofit projects in manufacturing lines. Long-tail keywords: pluggable interface relay, plug-in relay system, DIN rail mounted relay. Feature: Built in test button and indicator LED. Business Impact: Simplifies commissioning and troubleshooting, improving startup efficiency. Application: New installations and upgrade projects in control cabinets. Long-tail keywords: relay test button, LED status indicator, commissioning aid. Feature: Robust circular pin terminals and durable construction. Business Impact: Reduces contact wear and connection failures in repetitive operations. Application: Harsh industrial environments with frequent cycling. Long-tail keywords: durable relay terminals, circular pin terminals, industrial contact reliability. Feature: Broad environmental specs including IP40, -40 to +70 C, 2000 m altitude. Business Impact: Reliable performance across plant floors and varying climates without derating. Application: Factory automation, process lines, and automation cabinets. Long-tail keywords: IP40 relays, operating temperature range, rugged industrial relay. Feature: Compatibility with standard sockets, logic sockets, holders, and markers. Business Impact: Flexible integration within ABB CR-U ecosystem, scalable for future upgrades. Application: Modular automation architectures and scalable control systems. Long-tail keywords: CR-U compatibility, socket accessories, modular relay system.
Get a Quick Quote for a ABB 1SVR405622R8000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SVR405622R8000?
Enquire Now
FAQs
Install the CR-U110DC3 into a compatible CR-U socket, then snap the assembly onto a standard DIN rail. Ensure the control voltage is 110 V DC and that the wiring uses proper gauge for 250 V AC loads up to 10 A. Verify the LED indicator confirms coil energization after commissioning.
The relay provides three SPDT contacts rated to 250 V AC at up to 10 A, with DC control of 110 V. For AC loads, ensure Ie ratings meet the application: AC-12 up to 230 V at 10 A, and consider the DC-13 ratings for mixed loads. Observe IP40 and temperature limits.
Yes, CR-U110DC3 is designed for 110 V DC control. Its limitations include DC-13 ratings of 24 V or 250 V load at lower current (2 A at 24 V, 0.1 A at 250 V). For high DC loads, verify load currents stay within rated Ie and avoid exceeding contact life expectations under continuous cycling.
The device supports CE and UKCA declarations, UL/CSA recognitions, and other standards such as RoHS compliance. These certifications streamline regulatory approvals for Europe, the UK, and North America, reducing compliance risk when designing automotive, industrial, or process control solutions.
Pluggable relays like CR-U110DC3 reduce downtime during maintenance by enabling quick swap-outs without rewiring. The integrated test button and LED speed commissioning, diagnostics, and troubleshooting, while the modular design lowers spare parts inventory and total cost of ownership over time.
