ABB 1SVR405631R3100 Pluggable interface relay - IP40
Part Number: 1SVR405631R3100
Quick Summary
ABB 1SVR405631R3100 Pluggable interface relay enables compact, reliable control of automation panels. Engineers often face wiring complexity, long downtime, and challenging maintenance when relays fail or require replacement in tight control cabinets. This device carries UL 508, UR and CE markings along with IP40 protection, ensuring safety and environmental compliance in harsh environments. With a 230 V AC coil and 2 C/O SPDT outputs rated up to 7 A at 250 V, it supports quick plug-in installation and straightforward diagnostics. Its modular, pluggable design reduces spare parts inventory and accelerates panel upgrades, while compatibility with standard sockets and accessible accessories simplifies field service and future-proofing.
Product Information
Extended Description
1SVR405631R3100 ABB: The CR-MX230AC2L pluggable interface relay is from the CR-MX (miniature) relay range. This relay operates with a 230 V AC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 7 A. The relay has an integrated LED. Standard sockets, pluggable function modules, holders and markers are available as accessories.
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Country of Origin
India (IN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
INABB003EXPU
Warranty Return
Product under warranty must be returned
EAN
4013614498831
Minimum Order Quantity
300 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - Pluggable interface relays CR-MX Miniature relays
Instructions and Manuals
Instructions - CR-MX Range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.5 mm
Product Net Height
35 mm
Product Net Depth / Length
28 mm
Product Net Weight
0.037 kg
Function

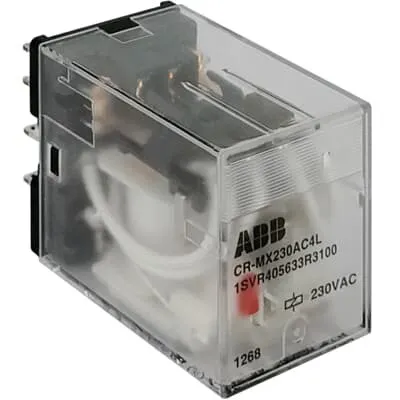

Pluggable miniature interface relay CR-MX
Sub-Function
Relay with built in LED
Rated Control Supply Voltage (Us)
230 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 7 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 7 A
Rated Operational Current AC-15 (Ie)
(120 V) 2 A | (230 V) 0.8 A
Rated Operational Current DC-12 (Ie)
(24 V) 7 A
Rated Operational Current DC-13 (Ie)
(24 V) 1.9 A | (120 V) 0.8 A
Rated Impulse Withstand Voltage (Uimp)
Between Coil and Contacts 1.5 kV
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CAN/CSA C22.2 No.14 | IEC/EN 63000 | IEC/EN 61810-1 | UL 508
Maximum Operating Voltage UL/CSA
250 V AC
Flammability According to UL94
V-2
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +70 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
1SVD982022-0002
RoHS Status
Following EU Directive 2011/65/EU
CQC Certificate
CQC Certificate - CR-MX range Pluggable interface relays with AC coil
cUR Certificate
cUR_E244330
Declaration of Conformity - CE
EU Declaration of Conformity - CR-MX Pluggable interface relays
TÜV Certificate
TUEV Certificate - Pluggable interface relays CR-MX range
UR Certificate
UR (ANSI/UL 508) Certificate - Pluggable interface relays / optocouplers CR-M, CR-MX, CR-P, CR-S, CR-U range
Package Level 1 Units
box 10 piece
Package Level 1 Width
142 mm
Package Level 1 Depth / Length
37 mm
Package Level 1 Height
103 mm
Package Level 1 Gross Weight
0.411 kg
Package Level 1 EAN
4013614487613
Package Level 2 Units
box 300 piece
Package Level 2 Width
300 mm
Package Level 2 Depth / Length
325 mm
Package Level 2 Height
205 mm
Package Level 2 Gross Weight
13.185 kg
Package Level 2 EAN
4013614505676
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
Feature → Business Impact → Application: The relay uses a 230 V AC coil and 2 C/O SPDT contacts, enabling seamless integration with common PLCs and control architectures; this reduces wiring complexity and improves fault isolation, delivering faster commissioning and lower commissioning costs in automated machinery. Application: Machine control panels and process automation where reliable signalling and compact form factor are critical. Feature → Business Impact → Application: Built-in LED indicator accelerates fault diagnosis and status monitoring, decreasing downtime and maintenance labor during routine checks or fault investigations. Application: Panel diagnostics in conveyors, packaging lines, and robotic cells. Feature → Business Impact → Application: Small footprint (21.5 mm width, 35 mm height, 28 mm depth) frees cabinet space and allows higher component density; benefit: tighter control cabinets and easier heat management. Application: Compact equipment enclosures and retrofits. Feature → Business Impact → Application: Certification portfolio including UL/CSA, TÜV, CE ensures regulatory compliance across multiple regions; benefit: broader market access and reduced vendor risk. Application: Global manufacturing setups with strict compliance. Feature → Business Impact → Application: Flat-Pin Connections and standard sockets support fast installation and straightforward replacement; benefit: reduced downtime and simplified maintenance. Application: Retrofit projects and new builds in industrial automation. Feature → Business Impact → Application: IP40 protection ensures reliable operation in typical workshop and cabinet environments; benefit: longer service life and lower maintenance costs. Application: Harsh factory floors and electrical cabinets with dust exposure.
