ABB 1SVR405641R3000 Pluggable interface relay - IP40
Part Number: 1SVR405641R3000
Quick Summary
ABB 1SVR405641R3000 pluggable interface relay is a compact SPDT device for isolating control circuits in automation. When mismatched control voltages or slow actuation disrupt uptime, maintenance costs rise and production losses occur. The CR-MX family carries CE, UL/CSA, and TÜV certifications, with IP40 protection for panel mounting. Ideal for machine controls and safety circuits, it’s compatible with standard sockets and CR-MX accessories to speed installation.
Product Information
Extended Description

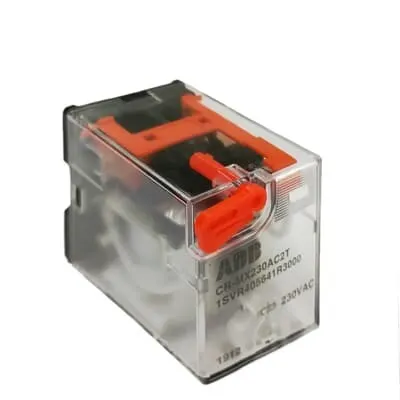

1SVR405641R3000 ABB: The CR-MX230AC2T pluggable interface relay is from the CR-MX (miniature) relay range. This relay operates with a 230 V AC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 7 A. The relay has an integrated orange test button for manual actuation and locking of the output contacts. Standard sockets, pluggable function modules, holders and markers are available as accessories.
EAN
4013614536076
Minimum Order Quantity
300 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
Data sheet - Pluggable interface relays CR-MX Miniature relays
Instructions and Manuals
Instructions - CR-MX Range
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
21.5 mm
Product Net Height
37 mm
Product Net Depth / Length
28 mm
Product Net Weight
0.034 kg
Function
Pluggable miniature interface relay CR-MX
Rated Control Supply Voltage (Us)
230 V AC
Rated Operational Voltage
250 V AC
Rated Frequency (f)
50 / 60 Hz
Output
2 c/o (SPDT) contacts
Output Signal
250 V / 7 A
Terminal Type
Flat-Pin Connections
Rated Operational Current AC-12 (Ie)
(230 V) 7 A
Rated Operational Current AC-15 (Ie)
(120 V) 2 A | (230 V) 0.8 A
Rated Operational Current DC-12 (Ie)
(24 V) 7 A
Rated Operational Current DC-13 (Ie)
(24 V) 1.9 A | (120 V) 0.8 A
Rated Impulse Withstand Voltage (Uimp)
Between Coil and Contacts 1.5 kV
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP40
Mounting Position
1
Standards
CSA 22.2 No. 14 | IEC/EN 63000 | IEC/EN 61010-1 | UL 508
Maximum Operating Voltage UL/CSA
250 V AC
Flammability According to UL94
V-2
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... +70 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
1SVD982022-0002
RoHS Status
Following EU Directive 2011/65/EU
CQC Certificate
CQC Certificate - CR-MX range Pluggable interface relays with AC coil
cUR Certificate
cUR_E244330
Declaration of Conformity - CE
EU Declaration of Conformity - CR-MX Pluggable interface relays
TÜV Certificate
TUEV Certificate - Pluggable interface relays CR-MX range
Package Level 1 Units
box 10 piece
Package Level 1 Width
103 mm
Package Level 1 Depth / Length
142 mm
Package Level 1 Height
37 mm
Package Level 1 Gross Weight
0.42 kg
Package Level 1 EAN
4013614536427
Package Level 2 Units
box 300 piece
Package Level 2 EAN
4013614540394
Object Classification Code
K
ETIM 7
EC001437 - Switching relay
ETIM 8
EC001437 - Switching relay
ETIM 9
EC001437 - Switching relay
eClass
V11.0 : 27371601
UNSPSC
39122331
Feature: 230 V AC rated coil with 2 c/o SPDT outputs. Business impact: direct control of loads up to 7 A at 250 V, simplifying panel wiring and improving response times. Application: suitable for compact control panels, machine interlocks, and automation modules that require quick, secure signal routing. Feature: Integrated orange test button for manual actuation. Business impact: enables quick verification of relay state in the field, reducing troubleshooting time and downtime. Application: ideal during commissioning, maintenance, and field servicing of automation equipment where reliable actuation verification matters. Feature: Flat-Pin connections and compact dimensions (21.5 × 37 × 28 mm). Business impact: enables dense panel layouts, faster wiring harness completion, and easier retrofits. Application: space-constrained control panels in packaging lines or automation cabinets. Feature: Standards and certifications: CE, UL/CSA, TÜV; Meets IEC/EN 61010-1; CSA 22.2; UL 508; IP40; Uimp 1.5 kV. Business impact: regulatory compliance reduces certification risk and speeds market entry. Application: equipment designed for multiple markets and industrial deployments. Feature: Accessory compatibility: standard sockets, pluggable function modules, holders and markers. Business impact: accelerates installation, simplifies maintenance, minimizes spare parts. Application: OEMs and panel builders requiring modular, upgradable relays. Feature: Environmental resilience: operation from -40 to +70 °C and up to 2000 m altitude without derating. Business impact: reliability in harsh environments reduces failure-related downtime and service costs. Application: manufacturing floors, process lines, and other demanding industrial settings.
